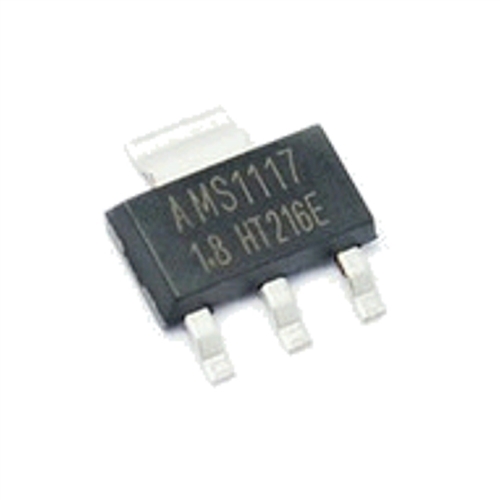

Product Images are shown for illustrative purposes only and may differ from actual product.

LM1117-1.8V SMD Voltage Regulator


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-09-26

  • SKU: 1102 | DAB620

Availability: NotInStock priceValidUntil: 2026-09-26

  • Rs. 11.80 (inc GST)
    Rs.10.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

LM1117-1.8V SMD Voltage Regulator

The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current.

It has the same pin-out as National Semiconductor’s industry standard LM317.

This is a fixed 1.8 volts LM1117 SMD voltage Regulator. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed band gap reference to assure output voltage accuracy to within ±1%. The LM1117 series is available in SOT-223, TO-220, and TO-252 D-PAK packages.

Features of LM1117-1.8V

  • Output Voltage : 1.8V

  • Space Saving SOT-223 Package

  • Current Limiting and Thermal Protection

  • Output Current 800mA

  • Line Regulation 0.2% (Max)

  • Load Regulation 0.4% (Max)

  • Temperature Range : 0˚C to 125˚C

Applications of LM1117-1.8V

  • 2.85V Model for SCSI-2 Active Termination

  • Post Regulator for Switching DC/DC Converter

  • High Efficiency Linear Regulators

  • Battery Charger

  • Battery Powered Instrumentation

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
