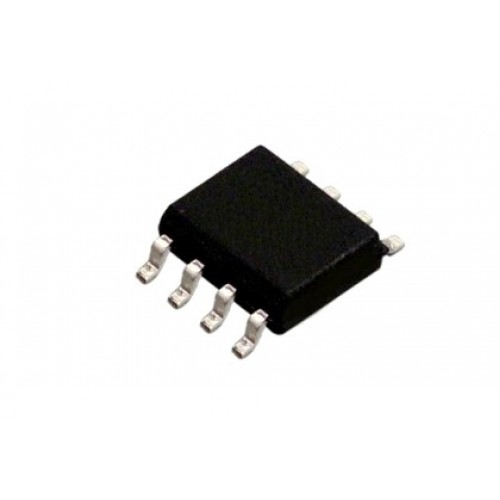

LM258 Operational Amplifier SMD IC

LM258 Dual Operational Amplifier SMD IC

LM258 Operational Amplifier SMD IC for analog signal processing with low power, single or dual supply, and compact packaging.

The LM258 Dual Operational Amplifier SMD IC is ideal for various analog signal processing tasks. This cost-effective amplifier operates on single or dual power supplies, making it versatile for industrial, automotive, and consumer applications. Its internal frequency compensation ensures robust performance while maintaining low power consumption, allowing for efficient designs in modern electronics.

With a gain bandwidth product of 1 MHz and a slew rate of 0.3 V/µs, the LM258 is suitable for signal conditioning, analog filters, and voltage comparators. The compact SMD packaging fits seamlessly into modern PCB layouts, making it an excellent choice for engineers focusing on space efficiency.

The LM258 operates over a temperature range of -40°C to +85°C and can drive output currents up to 20mA. Whether for instrumentation or monitoring applications, this operational amplifier meets the needs of various electronic projects effectively.

Explore our range of Voltage Regulators at DNA. The Nashik brand offers reliable components for your electronic needs. Check other Voltage Regulators that we have in stock.

At DNA, we support Indian electronics buyers. If you need specific components like Microcontrollers, Relays, or Sensors, reach out to us. We can import items that are not in stock and assist with both retail and bulk orders. Contact Us.

Features of LM258 Dual Operational Amplifier SMD IC

• Cost-effective for large-scale deployment
• Works on single or dual power supplies
• Compact SMD packaging for modern PCB designs
• Robust performance over a wide temperature range

Specification of LM258 Dual Operational Amplifier SMD IC

• Supply Current: 0.7mA
• Gain Bandwidth Product: 1 MHz
• Slew Rate: 0.3 V/µs
• Operating: -40°C to +85°C
• Output Drive Current: 20mA max
• Package Types: SOIC-8, TSSOP-8 & DIP-8

Applications of LM258 Dual Operational Amplifier SMD IC

• Signal Conditioning
• Analog Filters
• Voltage Comparators
• Current and Voltage Monitoring
• Instrumentation

Related Links for Nashik LM258 Dual Operational Amplifier SMD IC

• Other Products from Voltage Regulators Category

Package Includes

• 1 X LM258 Dual Operational Amplifier SMD IC
