• LM2596 Module With Display

Product Images are shown for illustrative purposes only and may differ from actual product.

LM2596 Module With Display

  • Stock: 12
  • SKU: 3638 | DAF080
  • Rs. 186.44 (inc GST)
    Rs.158.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM2596 Module With Display

LM2596 Module With Display

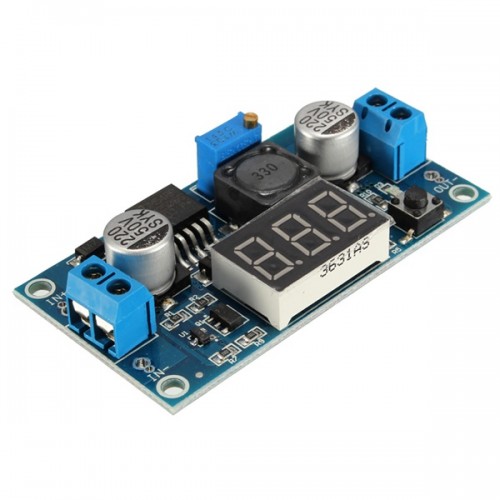

This version of LM2577 DC-DC step-up (boost) power supply module includes the very useful addition of an integrated digital voltage meter.

The LM2577 3A DC-DC Step UP LED Voltmeter 3-34V to 4-35V Adjustable Boost Converter module is a 150 KHz fixed frequency PWM buck (step-down) DC/DC module. Requiring a minimum number of external components, these regulators are cost-effective, and simple to use.

Together with its high precision multi-turn potentiometer, this means any desired output voltage within its supply range can be set without the need for an external voltage meter. The module also boosts a very high operating range with a DC input supply range of 3-34V and an adjustable output range of 4-35V.


DNA solutions, Nashik has various types of Power Module's. Check out our complete collection of  Power Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LM2596 Module With Display

  • Power-down memory function.
  • Press the button for 3 seconds can turn OFF/ON the LED display
  • Multiple output regulator.
  • One button to switch input and output voltage display.
  • With wiring terminal.
  • When adjusting the blue potentiometer, please use a multimeter to monitor the voltage
  • Rotating Clockwise can raise the voltage while rotating counterclockwise could lower the voltage
  • When the module output voltage cannot be adjusted (the output voltage is always equal to the input voltage )Please adjust the potentiometer counterclockwise 20 laps (20 turns) or more till it works.

    Specifications

    • Switching Frequency(KHz) :52
    • Operating Temperature(°C): -40 to 90
    • Input Voltage (V): 3 to 34
    • Output Voltage(V): 4 ~ 35
    • Max. Output Current (A): 3
    • Voltmeter Range(V): 0 to 40
    • Length (mm) :60
    • Width (mm): 35
    • Height (mm): 13.5
    • Weight (gm): 24

      Package Includes

      1 x LM2596 Module With Display
