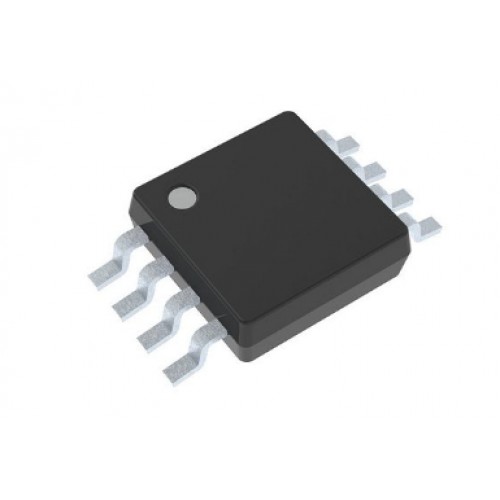

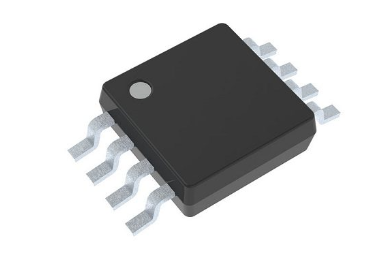

TXS0102DCTRE Bidirectional Voltage-Level Translator IC

TXS0102DCTRE Bidirectional Voltage-Level Translator

TXS0102DCTRE IC for bidirectional voltage translation, supporting 1.65V to 5.5V logic levels.

The TXS0102DCTRE Bidirectional Voltage-Level Translator is designed to facilitate communication between devices operating at different voltage levels. With A ports supporting 1.65V to 3.6V and B ports ranging from 2.3V to 5.5V, it ensures compatibility across various digital systems. This product is crucial for applications requiring seamless data transfer between 1.8V, 2.5V, 3.3V, and 5V voltage nodes.

In addition to its flexible voltage support, the TXS0102DCTRE features a high-impedance state option, allowing for reduced current consumption during power management. By using a pulldown resistor on the OE input, users can easily manage the device's state during initialization or shutdown. This capability enhances efficiency in low-power designs.

Applications for the TXS0102DCTRE Bidirectional Voltage-Level Translator include interfacing microcontrollers, sensors, and other digital components in mixed-voltage environments. It is an ideal choice for engineers looking to ensure reliable communication in their electronic projects.

Explore the reliability of Voltage Regulators at DNA. The TXS0102DCTRE by Texas Instruments ensures stable voltage levels in your projects. Check other Voltage Regulators that we have in stock.

If you're looking for specific electronic components, contact DNA. We can import items not currently in stock and support both retail and bulk orders. Explore our range of related products, including LCD, Digital IC, Development Module, and more. Contact Us.

Features of TXS0102DCTRE Bidirectional Voltage-Level Translator

• Bidirectional translation
• Supports 1.65V to 5.5V
• High-impedance state option
• Configurable power supply rails

Specification of TXS0102DCTRE Bidirectional Voltage-Level Translator

• Voltage range A: 1.65V to 3.6V
• Voltage range B: 2.3V to 5.5V
• I/O high-impedance state
• Low current consumption

Applications of TXS0102DCTRE Bidirectional Voltage-Level Translator

• Interfacing microcontrollers
• Mixed-voltage systems
• Digital signal translation
• Low-power electronic designs

Package Includes

• 1 X TXS0102DCTRE Bidirectional Voltage-Level Translator
