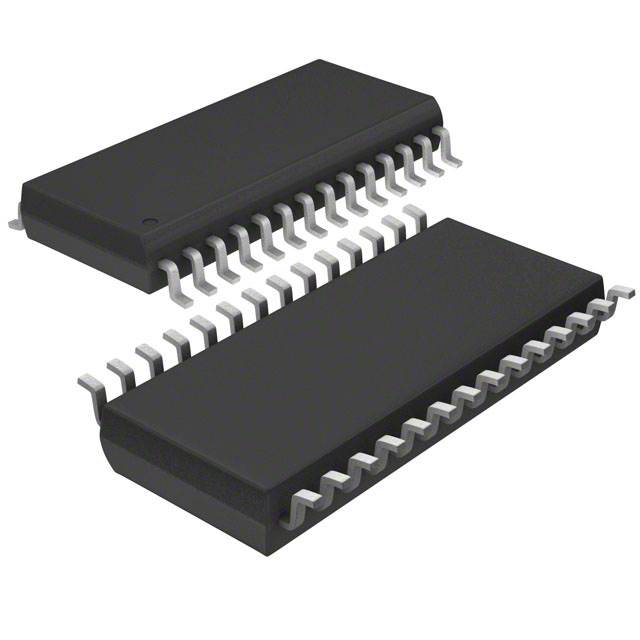

LM2642MTC/NOPB Switching Controller SMD IC

LM2642MTC/NOPB Dual-Channel PWM Controller

LM2642MTC/NOPB PWM Controller for buck converters; Wide input voltage range; High switching frequency up to 1 MHz.

The LM2642MTC/NOPB Dual-Channel PWM Controller is designed for synchronous buck converters in low-voltage applications. With a wide input voltage range of 4.5V to 30V and a high switching frequency of up to 1 MHz, it powers digital loads like microprocessors and FPGAs efficiently. Its compact TSSOP-20 package makes it suitable for space-constrained PCB designs in both industrial and consumer electronics.

This LM2642MTC/NOPB Dual-Channel PWM Controller features independent feedback loops and soft-start capabilities. It is ideal for DC-DC converter circuits and offers robust performance for applications such as networking and telecom equipment. The adjustable output voltage can go down to 0.8V, making it versatile for various power supply needs.

Incorporate the LM2642MTC/NOPB Dual-Channel PWM Controller into your projects for reliable power regulation. Its operating temperature ranges from -40°C to +125°C, ensuring performance in demanding environments. Explore this efficient solution for your power design requirements.

Explore the range of Power Devices at DNA solutions. The LM2642MTC/NOPB is a reliable choice for your power needs. Check other "Power Devices" that we have in stock.

If you need specific electronic components, reach out to us. We can help with imports and support retail and bulk orders. Check our range including Development Boards, Sensors, HMI Displays, Inductors, and DC to DC Converter Modules. Contact Us

Features of LM2642MTC/NOPB Dual-Channel PWM Controller

• Dual-channel PWM controller for synchronous buck converters
• Wide input voltage range: 4.5V to 30V
• High switching frequency up to 1 MHz
• Soft-start and current limit features
• Independent channel control with separate feedback
• Compact TSSOP-20 surface-mount package

Specification of LM2642MTC/NOPB Dual-Channel PWM Controller

• Input Voltage Range: 4.5V to 30V
• Output Voltage: Adjustable down to 0.8V
• Operating Frequency: Up to 1 MHz
• Topology: Dual Buck Converter Controller
• Package: TSSOP-20
• Operating Temperature: -40°C to +125°C

Applications of LM2642MTC/NOPB Dual-Channel PWM Controller

• Power supply for microprocessors and DSPs
• DC-DC converter circuits
• FPGA and ASIC core power regulators
• Industrial and embedded system power regulation
• Networking and telecom equipment

Package Includes

• 1 X LM2642MTC/NOPB Dual-Channel PWM Controller
