2 Wheel Robot Car Chassis

2Wheel Driver Smart Motor Robot Car Chassis

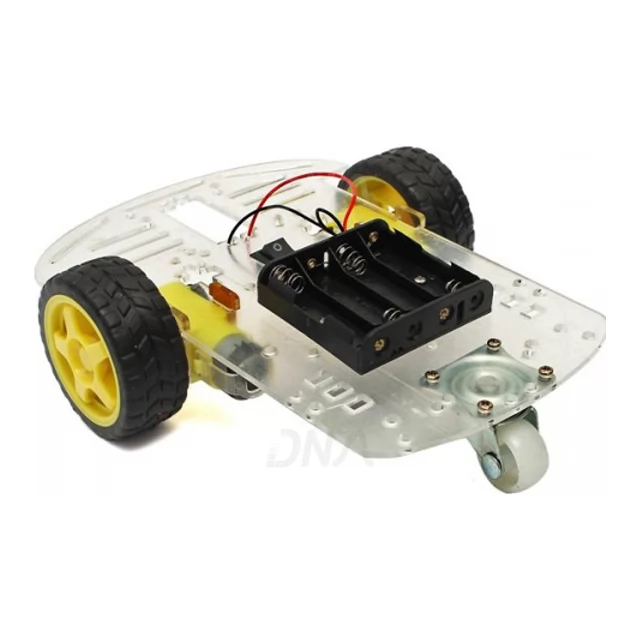

This is a very good looking chassis for two wheeled robotic car. It consists of 2 BO motors along with a castor wheel. This chassis is perfect for your small robotic car projects. And this kit also comes with a Battery Box Kit.

We have Various sizes of Hardware.Check out our complete collection of Hardware

Specification of Car Chassis

• Color : Transparent Water color

• Mechanical structure is simple, it is easy to install.

• This car is the tachometer encoder.

• Can be used for distance measurement, velocity.

• Can use with other devices to realize function of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control.

• For Motor : (Voltage, Current, No-load Speed, Load Speed, Torque, )

• DC 3V, 160mA, 120 rpm/min, 100 rpm/min, 0.45 kg.cm;

• DC 6V, 220mA, 200 rpm/min, 175 rpm/min, 1.0 kg.cm;

• DC 7.2V, 250mA, 250 rpm/min, 210 rpm/min, 1.5 kg.cm.

• Reduction Ratio : 1:48

• Noise : less than equal 65dB

• Motor Size : 65mm x 18mm x 22mm(L*W*H)

For Smart Car

• Voltage : 3~9V

• Drive Mode : 2WD

• Current : 600mA

• Chassis Thickness : 3mm

• Load : less than equal 2kg

• Car Weight : 285g

• Speed : 0.6 m/s

• Car Size : 220 x 175 x 65mm

Package List

• 1 x Car Chassis

• 2 x DC Gear Motor(1:48)

• 2 x Car Tire

• 2 x Velocimetry Code Wheel

• 1 x Universal Wheel

• 1 x Battery Container(battery is NOT included)

• 4 x M3*8 Screw

• 8 x M3 Nut

• 8 x M3*6 Screw

• 4 x M3*30 Screw

Note

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3cm.
