Product Images are shown for illustrative purposes only and may differ from actual product.

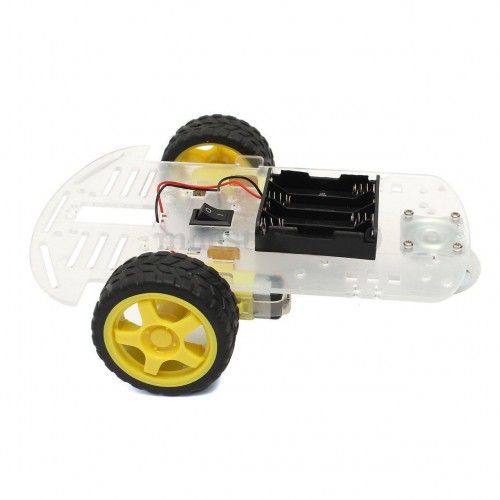

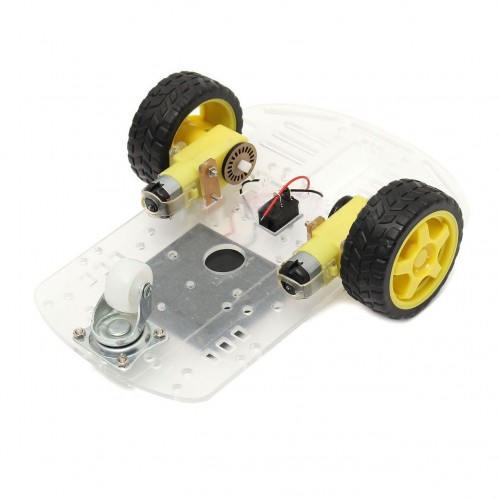

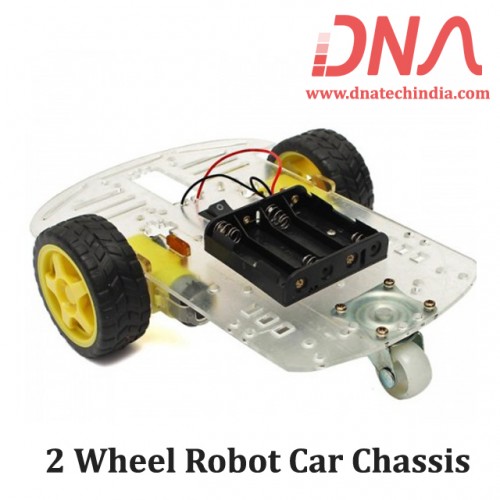

2 Wheel Robot Car Chassis

  • Stock: 2
  • SKU: 1312 | DAB279
  • Rs. 354.00 (inc GST)
    Rs.300.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

2 Wheel Robot Car Chassis

2Wheel Driver Smart Motor Robot Car Chassis

This is a very good looking chassis for two wheeled robotic car. It consists of 2 BO motors along with a castor wheel. This chassis is perfect for your small robotic car projects. And this kit also comes with a Battery Box Kit.

We have Various sizes of Hardware.Check out our complete collection of Hardware


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification of Car Chassis

  • Color : Transparent Water color
  • Mechanical structure is simple, it is easy to install.
  • This car is the tachometer encoder.
  • Can be used for distance measurement, velocity.
  • Can use with other devices to realize function of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control.
  • For Motor : (Voltage, Current, No-load Speed, Load Speed, Torque, )
  • DC 3V, 160mA, 120 rpm/min, 100 rpm/min, 0.45 kg.cm;
  • DC 6V, 220mA, 200 rpm/min, 175 rpm/min, 1.0 kg.cm;
  • DC 7.2V, 250mA, 250 rpm/min, 210 rpm/min, 1.5 kg.cm.
  • Reduction Ratio : 1:48
  • Noise : less than equal 65dB
  • Motor Size : 65mm x 18mm x 22mm(L*W*H)

For Smart Car

  • Voltage : 3~9V
  • Drive Mode : 2WD
  • Current : 600mA
  • Chassis Thickness : 3mm
  • Load : less than equal 2kg
  • Car Weight : 285g
  • Speed : 0.6 m/s
  • Car Size : 220 x 175 x 65mm

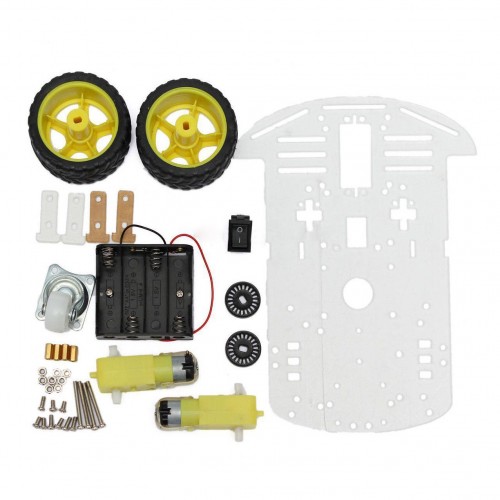

Package List

  • 1 x Car Chassis
  • 2 x DC Gear Motor(1:48)
  • 2 x Car Tire
  • 2 x Velocimetry Code Wheel
  • 1 x Universal Wheel
  • 1 x Battery Container(battery is NOT included)
  • 4 x M3*8 Screw
  • 8 x M3 Nut
  • 8 x M3*6 Screw
  • 4 x M3*30 Screw

Note

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3cm.

Related Link:

Related Video:

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
