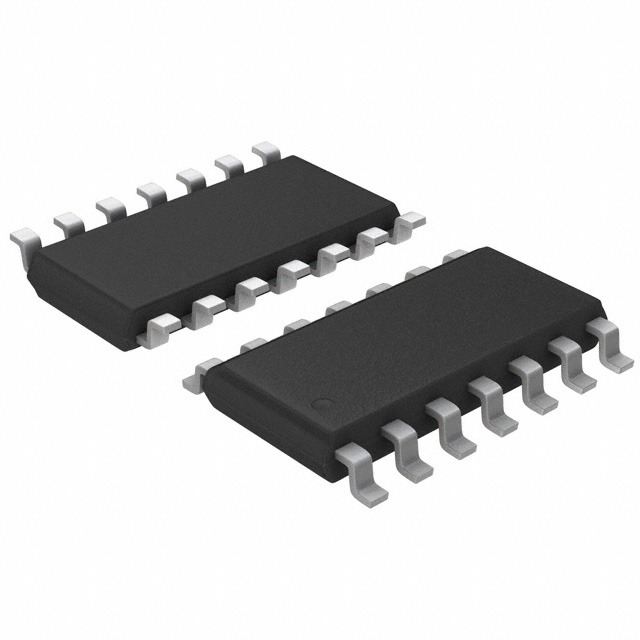

LM324 Quad OPAMP SMD IC

LM324 Quad OPAMP SMD Operational Amplifier IC

LM324 Quad OPAMP SMD IC designed for single power supply with 1 MHz bandwidth and low supply current drain.

The LM324 Quad OPAMP SMD Operational Amplifier IC is ideal for various applications, including transducer amplifiers and DC gain blocks. This IC operates efficiently from a single power supply of 3V to 32V, making it suitable for digital systems using standard +5V power. With a wide bandwidth of 1 MHz and low supply current of 700 µA, it excels in performance while ensuring minimal power consumption.

Designed with versatility in mind, the LM324 Quad OPAMP SMD Operational Amplifier IC features an input common-mode voltage range that includes ground and a large output voltage swing from 0V to V+ - 1.5V. This allows for effective implementation in conventional op-amp circuits. Its low input biasing current of 45 nA and offset voltage of 2 mV further enhance its reliability in sensitive applications.

In summary, the LM324 Quad OPAMP SMD Operational Amplifier IC is a robust solution for engineers and hobbyists alike. It simplifies circuit design while maintaining high performance, making it a valuable addition to any electronic project. Explore how this OPAMP can enhance your designs today.

Discover the reliability of the LM324 Quad OPAMP SMD from a trusted Manufacturer. At DNA, we offer a variety of OPAMP products to meet your electronic needs. Check other "OPAMP" that we have in stock.

At DNA, we cater to Indian electronics buyers. If you cannot find certain parts, let us help. We can import components not in stock and support both retail and bulk orders. Explore our range of related items like Development Module, Digital IC, Microcontroller, Inductor, and MOSFET. Contact Us.

Features of LM324 Quad OPAMP SMD Operational Amplifier IC

• Internally frequency compensated for unity gain
• Input common-mode voltage range includes ground
• Wide bandwidth of 1 MHz
• Low supply current drain of 700 µA
• Large output voltage swing from 0V to V+ - 1.5V

Specification of LM324 Quad OPAMP SMD Operational Amplifier IC

• Power supply range: 3V to 32V
• Low input biasing current: 45 nA
• Low input offset voltage: 2 mV
• Differential input voltage range: equal to power supply voltage
• Large DC voltage gain: 100 dB

Applications of LM324 Quad OPAMP SMD Operational Amplifier IC

• Transducer amplifiers
• DC gain blocks
• Conventional op-amp circuits
• Signal conditioning
• Audio processing

Related Links for LM324 Quad OPAMP SMD Operational Amplifier IC

• Other Products from OPAMP Category

Package Includes

• 1 X LM324 Quad OPAMP SMD IC
