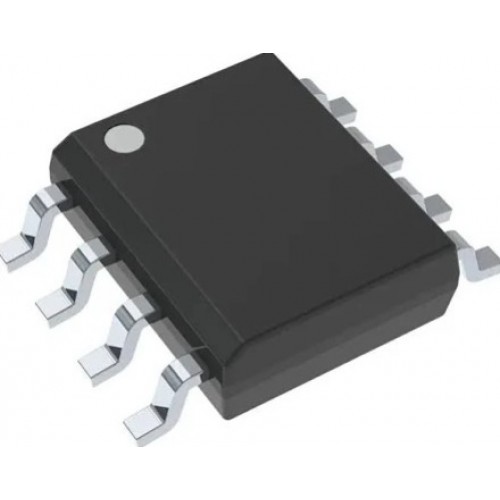

Product Images are shown for illustrative purposes only and may differ from actual product.
LM5002 High Input Voltage Switch Mode Regulator SMD IC
- Stock: Out Of Stock
- SKU: 8159 | DAH701
-
Rs. 400.37 (inc GST)
Rs.339.30 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
LM5002 High Input Voltage Switch Mode Regulator SMD IC
LM5002 High Input Voltage Switch Mode Regulator SMD IC
The LM5002 is a versatile high-input voltage switch-mode regulator IC designed for applications requiring a robust and efficient power conversion. It is capable of operating at input voltages as high as 80V, making it suitable for use in industrial, automotive, and telecom systems. The IC supports both step-up (boost) and step-down (buck) conversion configurations, offering flexibility for various power supply designs.
DNA solutions, Nashik has various types of Regulator IC's. Check out our complete collection of Regulator IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of LM5002 High Input Voltage Switch Mode Regulator SMD IC
- High Input Voltage Range: Operates from 3.1V to 80V, accommodating a wide variety of power sources
- Versatile Topology: Supports both step-up (boost) and step-down (buck) configurations for flexible design options
- Adjustable Switching Frequency: Programmable from 50 kHz to 2 MHz, allowing optimization for efficiency and size
- Integrated High-Side MOSFET Driver: Drives external N-channel MOSFETs, ensuring high efficiency
Specifications of LM5002 High Input Voltage Switch Mode Regulator SMD IC
- Input Voltage Range: 3.1V to 80V
- Output Voltage Range: Depends on external components
- Switching Frequency: 50 kHz to 2 MHz
- Output Current: Determined by external components
- Soft Start Time: Programmable
- Shutdown Current: 10 µA
- Thermal Shutdown: Yes
- Operating Temperature Range: -40°C to +125°C
- Package Types: SOIC-8 and VSSOP-8
Applications of LM5002 High Input Voltage Switch Mode Regulator SMD IC
- Industrial Power Supplies
- Automotive Systems
- Telecom Equipment
- Battery-Powered Devices
- LED Lighting
- Distributed Power Systems
Package Includes
1 x LM5002 High Input Voltage Switch Mode Regulator SMD IC
