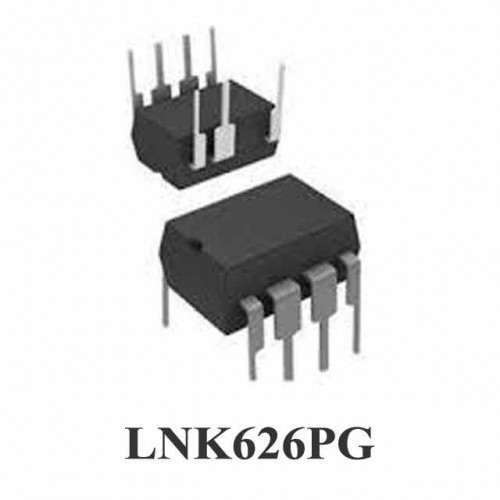

• LNK626PG LinkSwitch CV Off Line Switcher AC-DC Converter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

LNK626PG LinkSwitch CV Off Line Switcher AC-DC Converter IC

  • Stock: 15
  • SKU: 3336 | DAD085
  • Rs. 67.26 (inc GST)
    Rs.57.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LNK626PG LinkSwitch CV Off Line Switcher AC-DC Converter IC

LNK623-626 LinkSwitch-CV Family Energy-Efficient, Off-line Switcher With Accurate Primary-Side Constant-Voltage (CV) Control

The LinkSwitchTM-CV dramatically simplifies low power, constant voltage (CV) converter design through a revolutionary control technique which eliminates the need for both an optocoupler and secondary CV control circuitry while providing very tight output voltage regulation. The combination of proprietary IC trimming and E-Shield transformer construction techniques enables Clampless designs with the LinkSwitch-CV LNK623/4.

LinkSwitch-CV provides excellent cross-regulation for multiple-output flyback applications such as DVDs and STBs. A 725 V power MOSFET and ON/OFF control state machine, self-biasing, frequency jittering, cycle-by-cycle current limit, and hysteretic thermal shutdown circuitry are all incorporated onto one IC.

DNA solutions,Nashik has various types of Power IC's. Check out our complete collection of  Power IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

  • Compensates for external component temperature variations
  • Very tight IC parameter tolerances using proprietary trimming technology
  • Continuous and/or discontinuous mode operation for design flexibility
  • Frequency jittering greatly reduces EMI filter cost
  • Even tighter output tolerances achievable with external resistor selection/trimming

Applications

  • DVD/STB
  • Adapters
  • Standby and auxiliary supplies
  • Home appliances, white goods and consumer electronics
  • Industrial controls

Package Includes

1X LNK626PG LinkSwitch CV Off Line Switcher AC-DC Converter IC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
