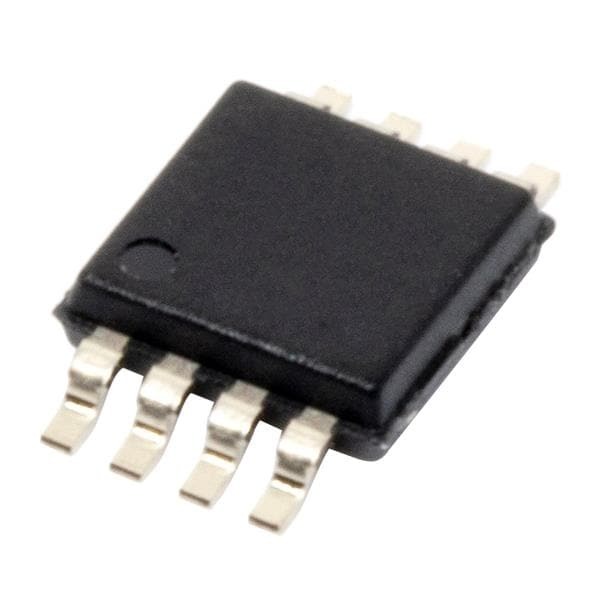

LTC4444MPMS8E #PBF Gate Driver MOSFET (MSOP)

LTC4444MPMS8E #PBF Gate Driver MOSFET (MSOP)

The LTC4444 is a high frequency high voltage gate driver that drives two N-channel MOSFET's in a synchronous DC/DC converter with supply voltages up to 100 V. This powerful driver reduces switching losses in MOSFET;s with high gate capacitance. The LTC4444 is configured for two supply-independent inputs. The high side input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 114 V above ground. The LTC4444 contains under voltage lockout circuits that disable the external MOSFET's when activated. Adaptive shoot-through protection prevents both MOSFET's from conducting simultaneously.

DNA solutions, Nashik has various types of MOSFET's. Check out our complete collection of MOSFET's.

• AEC-Q100 Qualified for Automotive Applications

• Bootstrap Supply Voltage to 114V

• Wide VCC Voltage: 7.2V to 13.5V

• Adaptive Shoot-Through Protection

• 2.5A Peak TG Pull-Up Current

• 5ns TG Fall Time Driving 1nF Load

• 3ns BG Fall Time Driving 1nF Load

• Drives Both High and Low Side N-Channel MOSFETs

• Undervoltage Lockout

• Thermally Enhanced 8-Lead MSOP Pack

Specifications of LTC4444MPMS8E #PBF Gate Driver MOSFET (MSOP)

• Product: MOSFET Gate Drivers

• Type: High-Side, Low-Side

• Mounting Style: SMD/SMT

• Package/Case: MSOP-E-8

• Output Current: 3 A

• Series: LTC4444

• Packaging: Tube

• Input Voltage - Max:114 V

Applications of LTC4444MPMS8E #PBF Gate Driver MOSFET (MSOP)

• Distributed Power Architectures

• Automotive Power Supplies

• High Density Power Modules

• Telecommunications

Package Includes

      1 x LTC4444MPMS8E #PBF Gate Driver MOSFET (MSOP)
