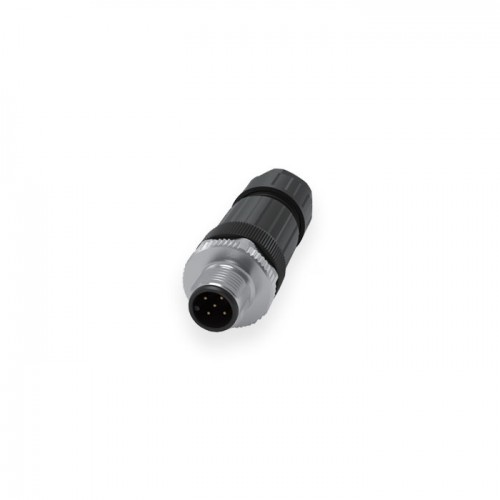

M12 5PIN MALE SOLDER TYPE CONNECTOR

M12 5PIN MALE SOLDER TYPE CONNECTOR

The M12 5-Pin Male Solder-Type Connector is a robust, industrial-grade circular connector designed for reliable electrical connections in automation, sensor, and control systems. Featuring a 5-pin A-coded male configuration, it is suitable for both signal and low-power transmission applications. This connector offers solder-type terminations, enabling secure and permanent wire connections-ideal for custom cable assemblies and field installations. Its threaded M12 locking mechanism ensures vibration-resistant mating, making it a dependable choice for harsh or mobile environments. Constructed with a durable metal housing (typically nickel-plated brass or stainless steel), the connector provides mechanical strength and electromagnetic interference (EMI) shielding.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• 5-Pin Male Connector: Standard A-coded M12 connector with 5 pins for signal, power, or data transmission.

• Solder-Type Termination: Internal solder cups for secure and permanent wire connections -ideal for custom cable assemblies.

• Threaded Locking Mechanism: M12 threaded interface ensures secure and vibration-resistant connections, especially in industrial environments.

• Rugged and Sealed Design: Typically supports IP67/IP68 sealing when mated, offering resistance to dust, moisture, and oil ingress.

• Durable Metal Housing: Metal or nickel-plated brass shell for mechanical durability and EMI shielding.

Specifications of M12 5PIN MALE SOLDER TYPE CONNECTOR

• Connector Type: M12 Male

• Termination: Solder Type

• Pin Count: 5

• Rated Voltage: 30V- 250V AC/DC

• Rated Current: ~2-4A per pin

• Contact Material: Gold-plated brass or phosphor bronze

Applications of M12 5PIN MALE SOLDER TYPE CONNECTOR

• Industrial sensors and actuators

• Fieldbus and Ethernet-based systems

• Robotics and factory automation

• Outdoor or harsh-environment installations

• Custom cable assemblies for control panels and equipment

Package Includes

      1 x M12 5PIN MALE SOLDER TYPE CONNECTOR
