Product Images are shown for illustrative purposes only and may differ from actual product.

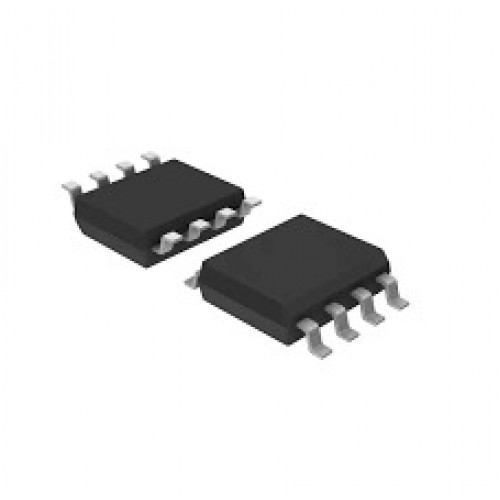

MAX3485ESA RS485 / RS422 Transceiver IC SOIC8


Write a review | 4 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-10-02

  • SKU: 7126 | DAH068

Availability: InStock priceValidUntil: 2026-10-02

  • Rs. 153.40 (inc GST)
    Rs.130.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MAX3485ESA RS485 / RS422 Transceiver IC

MAX3485ESA RS485 Transceiver IC, 3.3V supply, supports 32 nodes, 10 Mbit/s data rate.

The MAX3485ESA RS485 / RS422 Transceiver IC is engineered for robust communication in industrial systems. Operating with a single 3.3V supply, it ensures seamless interoperability with 5V logic. This transceiver supports up to 32 nodes on the bus and boasts a data rate of 10 Mbit/s, making it ideal for low-power RS-485/RS-422 applications. With its 8ns max skew and slew-rate limited design, it guarantees errorless data transmission.

Designed for reliability, the MAX3485ESA features a low-current shutdown mode, consuming just 2nA, which is beneficial for power-sensitive applications. The common-mode input voltage range of -7V to +12V enhances its versatility across various setups. This transceiver is suitable for diverse applications, including industrial control and telecommunications, ensuring effective communication in EMI-sensitive environments.

Explore the capabilities of the MAX3485ESA RS485 / RS422 Transceiver IC in local area networks and packet switching systems. Its industry-standard 75176 pinout simplifies integration into existing designs. Trust this transceiver for reliable and efficient communication in your electronic projects.

Discover the reliability of the MAX3485ESA RS485 / RS422 Transceiver IC from Maxim at DNA. Explore our range of Communication IC's to find the right components for your projects. Check other Communication IC's that we have in stock.

At DNA, we cater to all your electronic component needs. If you're searching for specific parts like Transistors, Crystals, or IGBTs, feel free to reach out. We can also import components if they're not in stock. Contact Us.

Features of MAX3485ESA RS485 / RS422 Transceiver IC

  • Operates from a single 3.3V supply
  • Interoperable with +5V logic
  • 8ns max skew
  • 2nA low-current shutdown mode
  • Supports up to 32 nodes on the bus
  • Full-duplex and half-duplex versions available
  • Industry standard 75176 pinout

Specification of MAX3485ESA RS485 / RS422 Transceiver IC

  • Operating voltage: 3.0V to 3.6V
  • Data rate: 10 Mbit/s
  • Common-mode input voltage range: -7V to +12V

Applications of MAX3485ESA RS485 / RS422 Transceiver IC

  • Industrial control
  • Local area networks
  • Integrated services digital networks
  • Telecommunications
  • Packet switching

Package Includes

  • 1 X MAX3485ESA RS485 / RS422 Transceiver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
