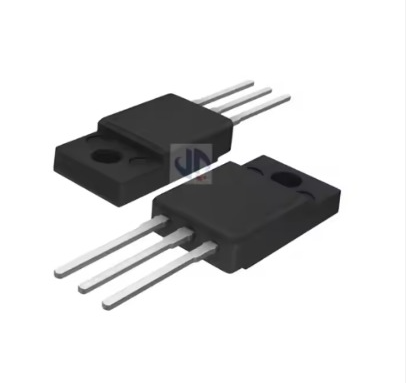

MDF7N60B N‑Channel MOSFET TO‑220F Package

MDF7N60B N-Channel MOSFET for Power Applications

MDF7N60B: High-Voltage N-Channel MOSFET with 600V, 7A, and low RDS(on) for efficient energy transfer.

The MDF7N60B N-Channel MOSFET is engineered for high-voltage switching in power supply applications. With a drain-source voltage of 600V and a continuous drain current of 7A, it ensures reliable operation in LED drivers and industrial electronics. Its low on-resistance of 1.4Ω maximizes energy efficiency and minimizes thermal loss, making it ideal for compact PCB designs.

Packaged in a TO-220F casing, the MDF7N60B provides robust thermal performance. This feature is crucial for applications requiring high-speed switching and low gate charge. The MOSFET's specifications cater to various uses, including switch mode power supplies and battery management systems, ensuring versatility in electronic designs.

Choose the MDF7N60B for your next project to experience dependable performance in high-voltage environments. Its design supports efficient energy transfer, making it suitable for both retail and bulk purchases across India.

Explore the MDF7N60B N-Channel MOSFET from a trusted manufacturer in the MOSFET & IGBT category. Visit DNA to discover more reliable electronic components. Check other "MOSFET & IGBT" that we have in stock.

If you're searching for specific electronic parts, reach out to us. We can help source hard-to-find components and also import them if necessary. We support both retail and bulk purchases. Explore related items like Crystal, Inductor, or DC to DC Converter IC. Contact Us.

Features of MDF7N60B N-Channel MOSFET

• N-Channel enhancement mode
• High drain-source voltage: 600V
• Continuous drain current: 7A
• Low on-resistance RDS(on): 1.4Ω max
• Fast switching speed and low gate charge
• TO-220F package for thermal efficiency

Specification of MDF7N60B N-Channel MOSFET

• Transistor Type: N-Channel MOSFET
• Drain-Source Voltage (VDSS): 600V
• Continuous Drain Current (ID): 7A
• RDS(on): 1.4Ω max @ VGS = 10V
• Total Gate Charge (Qg): ~27nC
• Gate-Source Voltage (VGS): ±30V
• Power Dissipation (PD): ~40W (TC=25°C)
• Package: TO-220F

Applications of MDF7N60B N-Channel MOSFET

• Switch mode power supplies (SMPS)
• LED drivers and lighting control
• Battery management and charging systems
• High-voltage inverter circuits

Related Links for MDF7N60B N-Channel MOSFET for Power Applications

• Other Products from MOSFET & IGBT Category

Package Includes

• 1 X MDF7N60B N-Channel MOSFET (TO-220F)
