Meanwell EDR-75-12 SMPS

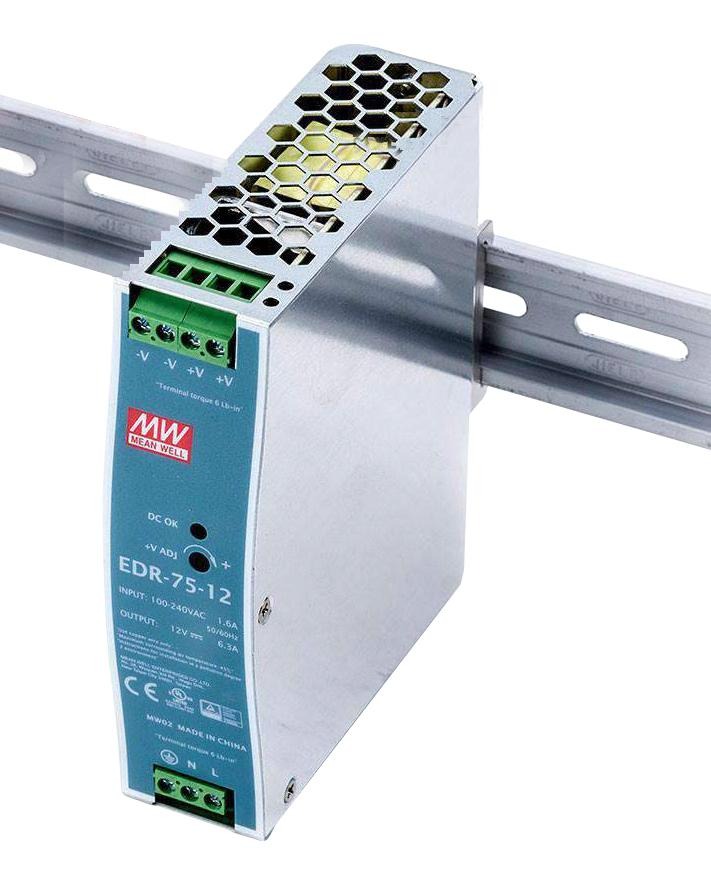

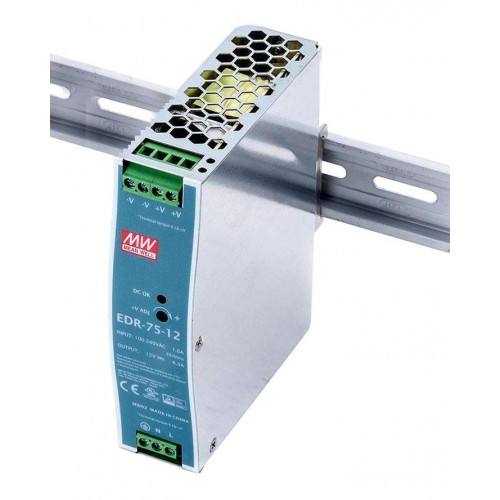

EDR-75-12: 75 Watt 12 Volt Meanwell DIN Rail SMPS

The Meanwell EDR-75-12 is a compact 75 Watt DIN rail-mounted SMPS designed for industrial automation and control systems. It provides a regulated 12V DC output at 6.3 Amperes and supports a full range AC input (90 to 264VAC / 127 to 370VDC). With high efficiency (up to 86.5%), fanless convection cooling, and reliable protection features, the Meanwell EDR-75-12 is ideal for PLC panels, factory automation, and embedded control systems.

DNA is a trusted supplier of Meanwell SMPS in India, offering retail and bulk purchase options. We stock popular Meanwell products like AC-DC converters, DC-DC converters, DIN rail power supplies, and LED drivers, sourced directly from authorized distributors and ready for quick dispatch.

Can’t find Electronic Component you’re looking for? Our team can source it for you – just get in touch.

Features of Meanwell EDR-75-12 SMPS

• Universal AC input / Full range: 90–264 VAC, 127–370 VDC
• Output: 12 Volt DC, 6.3 Ampere, 75.6 Watt
• High efficiency up to 86.5%
• DIN rail TS-35/7.5 or 15 mountable
• Cooling by free air convection
• Wide operating temperature range: –20°C to +60°C
• Overload, overvoltage, and short circuit protection
• UL 508 (industrial control equipment) approved
• LED indicator for power on
• 3-year manufacturer warranty
• Compact and space-saving design

Specifications of Meanwell EDR-75-12 SMPS

• Output Voltage: 12 Volt DC
• Rated Current: 6.3 Ampere
• Rated Power: 75.6 Watt
• Voltage Adj. Range: 12 – 15 Volt
• Input Voltage Range: 90–264 VAC / 127–370 VDC
• Frequency Range: 47–63 Hz
• Efficiency (Typ.): 86%–86.5%
• Inrush Current: 30A max at 230VAC
• Hold up Time: 60ms at 230VAC
• Operating Temp. Range: –20°C to +60°C (derating above 50°C)
• Cooling Method: Natural air convection (Fanless)
• Dimensions (L×W×H): 32 × 125.2 × 113.5 mm
• Protections: Short circuit, overload, overvoltage
• Certifications: UL, CE, EAC
• Mounting Type: DIN Rail (TS-35/7.5 or TS-35/15)

Applications of Meanwell EDR-75-12 SMPS

• Industrial automation and control systems
• PLC and HMI-based panels
• Process control and instrumentation
• Machine building and factory automation
• Embedded and test equipment
• DIN rail panel integration
• 12V sensors, relays, and controllers

Related Links

• Meanwell EDR-75-12 SMPS Datasheet
• Explore more Meanwell SMPS models

Package Include

• 1 x Meanwell EDR-75-12 SMPS
