ESP8266 SMD Adapter Board R2


Write a review | 0 reviews

  • Stock: 3
  • SKU: 2323 | DAB916
  • Rs. 223.02 (inc GST)
    Rs.189.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

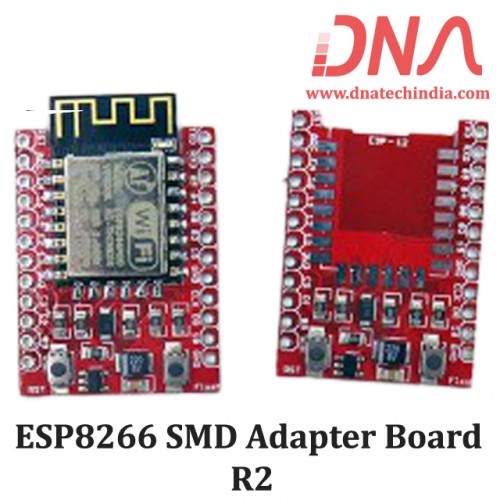

ESP8266 SMD Adapter Board R2 [version]

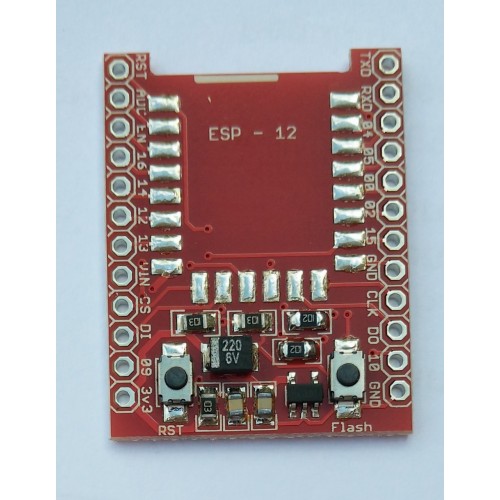

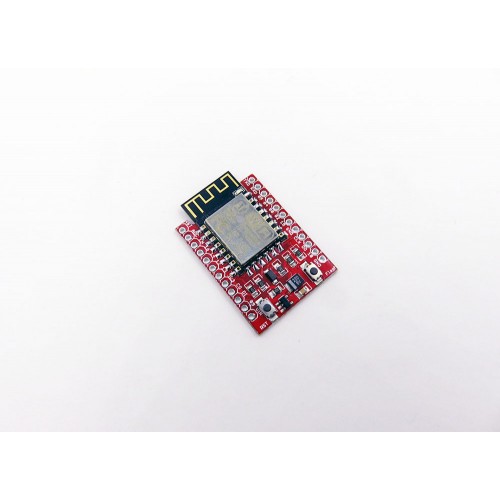

SMD Adapter Board for ESP8266 IoT Module

This is a simple breakout board for ESP8266 IoT Module. This version version support not only ESP07, ESP12 but also new ESP12F, which has extra 6 pis (SPI and I/Os).

NOTE: This is just the adapter board and does not come with ESP8266. You will have to buy ESP8266 Module separately

DNA Solutions has large collection of various types of ESP Wifi Module. Check our complete collection of ESP Wifi Module.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features:

  • On board LDO SPX3819-3.3V, 500mA, input voltage 4-16V. (Updated on R2.2 June 2018)
  • Serial TXD, RXD is 3.3V/5V logic complaint now, support max upload speed, arduino – 921600, esp download tool – 1500000 bps.
  • (This is from version 2.1, old version ardiuno can not up to max speed.)
  • EN(CHPD), IO2 pull up, GPIO15 pull down.
  • IO0 and reset pull up and connect with buttons.
  • Press down the flashing firmware  then press the reset will enter into firmware fleshing mode
  • Breadboard friendly.
  • Board size 25.4 x 33 mm
