Product Images are shown for illustrative purposes only and may differ from actual product.

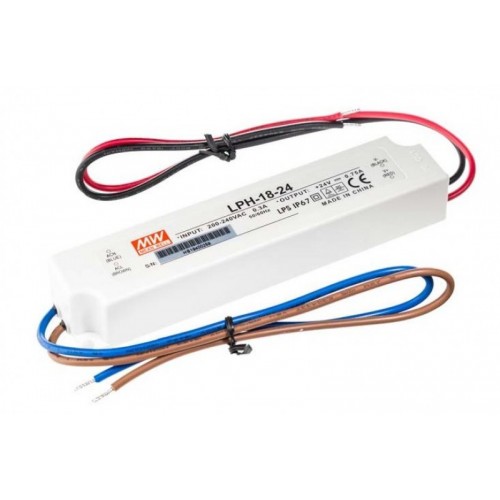

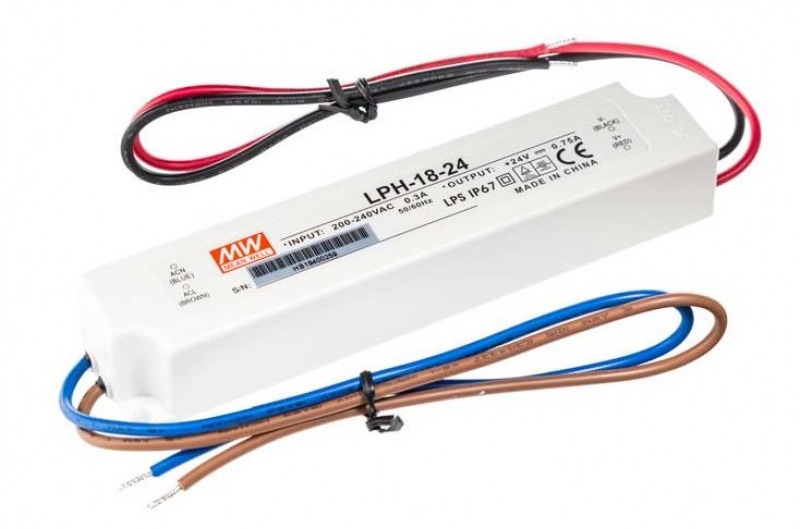

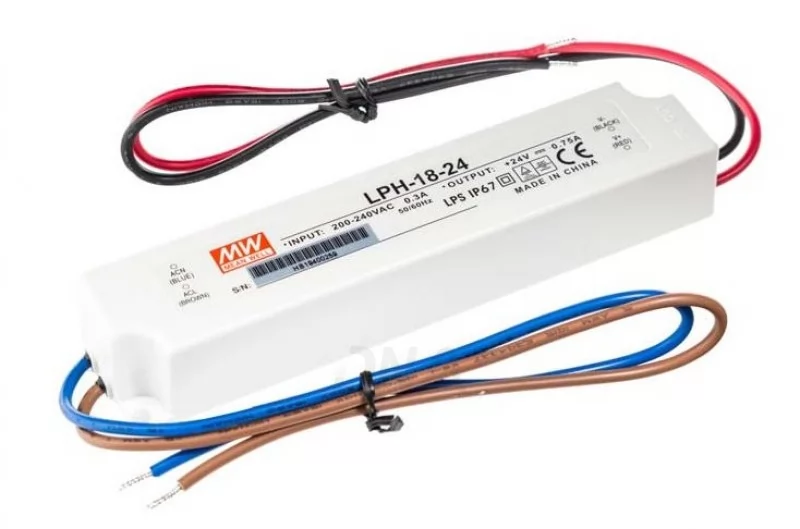

Mean Well LPH-18-24 18 W AC-DC Switching Power Supply

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Meanwell
  • SKU: 7569 | DAD651

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 744.58 (inc GST)
    Rs.631.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mean Well LPH-18-24 18 W AC-DC Switching Power Supply

Mean Well LPH-18-24 18 W AC-DC switching power supply with a 24 V DC, 0.75 A single output and IP67-approved encapsulation.

The Mean Well LPH-18-24 is an 18 W single-output AC-DC switching power supply that converts AC input to regulated 24 V DC. It delivers up to 0.75 A for equipment that needs a stable low-voltage supply. Its IP67-approved encapsulated design suits installations where the power unit needs a sealed enclosure.
The encapsulated construction helps protect the supply, while built-in short-circuit, overload, overvoltage and overtemperature protection helps guard against common fault conditions. Free-air convection cooling avoids the need for a fan, and the Class II design has no FG connection.
Use this 24 V AC-DC power supply for LED lighting and moving sign applications. Its single output gives designers a clear way to power these loads from an AC source.
DNA stocks Mean Well power supplies for electronics projects and equipment. Explore our Meanwell SMPS range to find a supply that fits your design. Check other Meanwell SMPS that we have in stock
DNA supports Indian electronics buyers with import help and retail or bulk orders. If you cannot find a part, contact us; we can also help source LCDs, programmers, DC to DC converter ICs, development modules, sensors and capacitors. Contact Us

Features of Mean Well LPH-18-24 18 W AC-DC Switching Power Supply

  • Fully encapsulated construction
  • Short-circuit, overload, overvoltage and overtemperature protection
  • Free-air convection cooling
  • Class II design with no FG connection
  • Passes LPS requirements

Specifications of Mean Well LPH-18-24 18 W AC-DC Switching Power Supply

  • Rated output voltage: 24 V DC
  • Rated output current: 0.75 A
  • Rated output power: 18 W
  • Input voltage range: 180–264 VAC or 254–370 VDC
  • Operating temperature: −30 to +70°C, refer to derating curve
  • Ripple and noise: 150 mVp-p maximum
  • Output voltage tolerance: ±3.0%
  • Dimensions: 140 × 30 × 22 mm (L × W × H)

Applications of Mean Well LPH-18-24 18 W AC-DC Switching Power Supply

  • LED lighting
  • Moving sign applications

Related Links for Mean Well LPH-18-24 18 W AC-DC Switching Power Supply

Package Includes

  • 1 X Mean Well LPH-18-24 18 W AC-DC Switching Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
