Mean Well RQ-85D Quad-Output Switching Power Supply

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Meanwell
  • SKU: 11249 | DAJ343

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 3,548.85 (inc GST)
    Rs.3,007.50 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

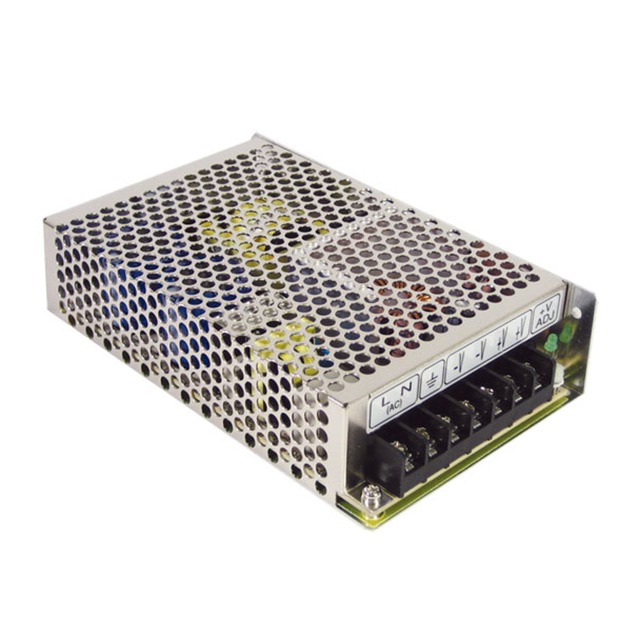

Mean Well RQ-85D Quad-Output Switching Power Supply

Mean Well RQ-85D quad-output switching power supply with 84 W total output, four DC rails, and 88–264 VAC or 125–373 VDC input.

Mean Well RQ-85D is a quad-output switching power supply that converts AC or DC input into four DC rails. It delivers up to 84 W total and accepts 88–264 VAC or 125–373 VDC input. Its +5 V, +12 V, +24 V and -12 V outputs support systems that need several supply rails from one unit.
The four-output power supply design keeps these rails in one unit and can simplify power wiring. Overload and CH1 overvoltage protection use hiccup operation and recover after the fault clears. Short-circuit protection adds another layer of fault response. Free-air convection cooling needs no fan, while a power-on LED helps show operating status. The Mean Well RQ-85D switching power supply suits designs that need several DC output levels from one supply.
DNA stocks Mean Well products in the Meanwell SMPS category for electronics buyers in India. Explore this supply and other power options for your builds. Check other Meanwell SMPS that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders. Ask us about related MOSFET, diode, resistor, LCD, humidity and temperature sensor, or sensor options. Contact Us

Features of Mean Well RQ-85D Quad-Output Switching Power Supply

  • Four DC outputs in one power supply
  • Overload protection with automatic recovery after the fault clears
  • CH1 overvoltage protection with automatic recovery after the fault clears
  • Short-circuit protection
  • Free-air convection cooling
  • Power-on LED indicator

Specifications of Mean Well RQ-85D Quad-Output Switching Power Supply

  • Rated output power: 84 W maximum total
  • DC outputs: +5 V/6 A, +12 V/2 A, +24 V/1 A, and -12 V/0.5 A rated
  • Input voltage: 88–264 VAC or 125–373 VDC
  • Input frequency: 47–63 Hz
  • Efficiency: 78% typical
  • Operating temperature: -25 to +70°C
  • Dimensions: 159 × 97 × 38 mm (L × W × H)

Related Links for Mean Well RQ-85D Quad-Output Switching Power Supply

Package Includes

  • 1 X Mean Well RQ-85D Quad-Output Switching Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
