MK2422 Bi-optic 360 degree Scanner

MK2422 Bi-optic 360 degree Scanner

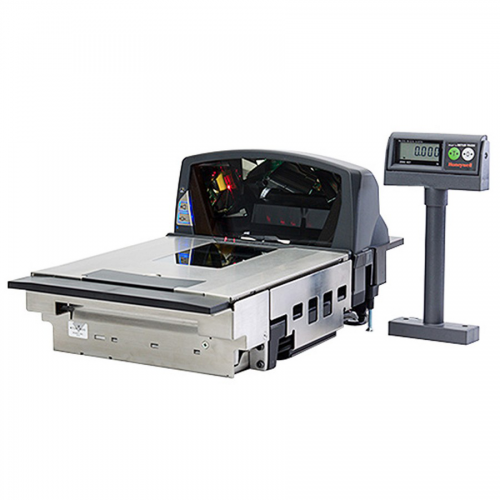

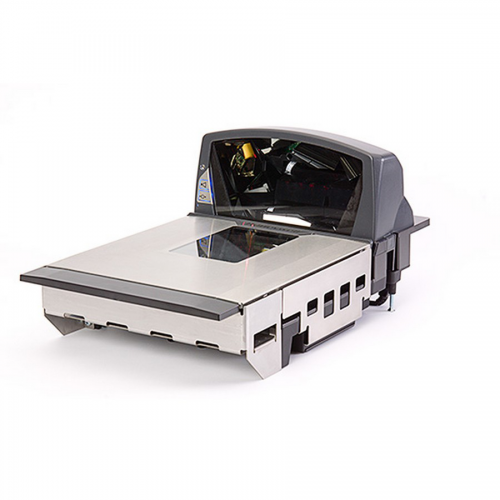

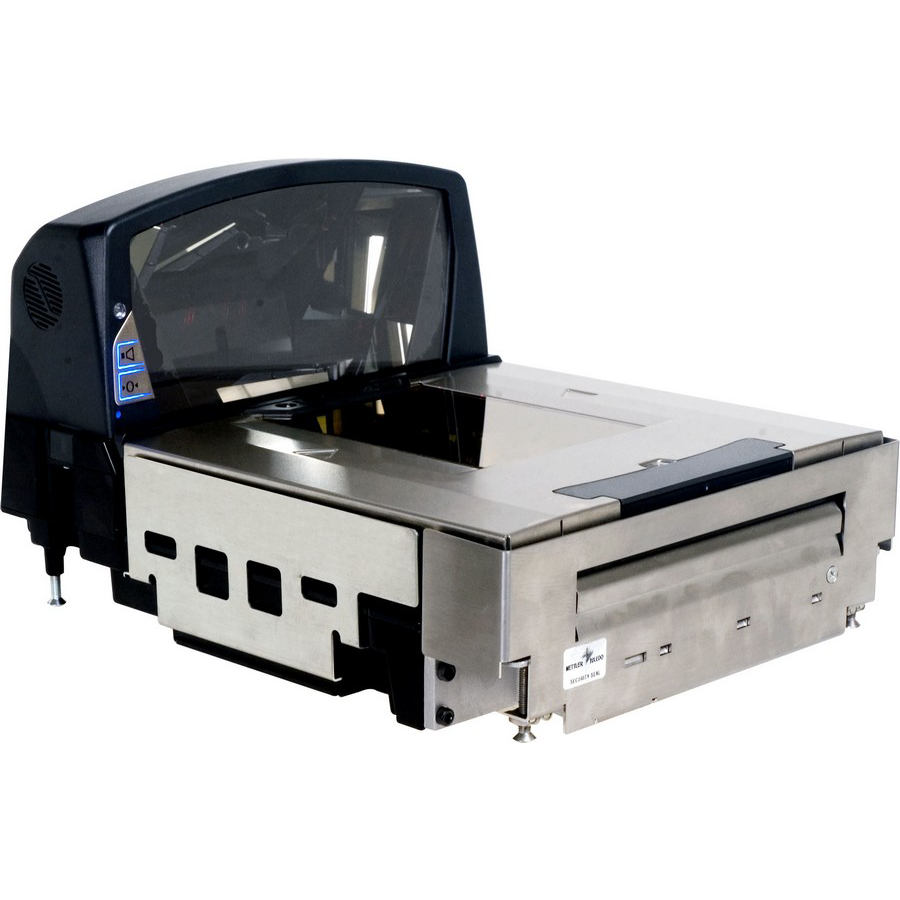

Honeywell’s Stratos® 2400 5-sided, 360°-bioptic scanner/scale increases productivity in demanding, high-volume seated environments where shorter vertical towers are required, and poor quality and highdensity bar codes are prevalent.

Independent scanning planes and a modular design lower maintenance costs and ensure continuous operation. The Stratos 2400 series provides retailers with the ability to deploy a single scanner platform across multiple store formats around the world, including stores with 353 mm (13.9”), 399 mm (15.7”), and 508 mm (20”) scanner footprints.

Aggressive scan performance on high density and poor quality bar codes minimizes the need for manual keying. The 2400 also excels at scanning GS1 DataBar™ codes, ensuring compliance with sunrise initiatives. Rapid pass-through scanning allows cashiers to maintain a constant motion across a wide range of bar codes, leading to faster customer processing, shorter lines, optimization of the number of open checkout lanes, and lower labor and energy costs.

Features of MK2422

• 5-sided, 360°-Scanning : Improves productivity and operator ergonomics by reducing product orientation

• StratosSYNCTM Independent Scanning Planes : Maintains productivity and uptime via independent scanning planes

• StratosSCHOOL Operator Training Software : Improves productivity and promotes safer scanning techniques

• StratosSWAPTM Pre-Aligned Optical Scanning Modules : Minimizes downtime and lowers the cost of service via modular optical scan engines

• StratosSTATS Productivity Analytical Software : Provides data critical to maintaining checkout productivity

• Remote MasterMindTM Scanner Management Sofware : Offers a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location

• Flip-Up Weigh Bar : Single or three-sided options allow cashiers to accurately weigh oversized produce, reducing shrink loss

Environmental Data of MK2422

• Operating Temperature : 0°C to 40°C (32°F to 104°F)

• Storage Temperature : -40°C to 60°C (-40°F to 140°F)

• Humidity : 5% to 95% relative humidity, non-condensing

• Environmental Sealing : Sealed to resist airborne particulate contaminants

• Light Levels : 4842 Lux

Performance Data of MK2400

• Depth of Scan Field (Horiz/Vert) : H: 0 mm - 100 mm (0˝-4˝); V: 0 mm - 216 mm (0˝-8.5˝) for 0.33 mm (13 mil) bar code

• Sides Read/Scan Zone : 5 / 360°

• Scan Pattern : Omnidirectional : 54 scan lines (Horizontal: 38 scan lines; Vertical: 16 scan lines)

• Scan Speed : 5400 scan lines per second

• Resolution : 4.5 mil (0.114 mm)

• Print Contrast : 35% minimum reflctance difference

• Decode Capability : Reads standard 1D and GS1 DataBar symbologies
