2x18 2.54mm female precut header

2x18 2.54mm female precut header

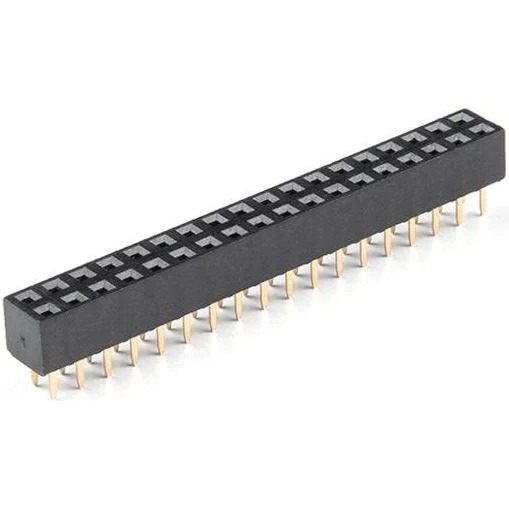

The 2x18 2.54mm female precut header is a dual-row connector consisting of 36 sockets, arranged in two rows of 18 pins each. This header is used for making secure, removable connections between circuit boards, microcontrollers, or other electronic modules. The 2.54mm pitch is standard for many electronic components, making this header compatible with a wide variety of devices and accessories in prototyping and circuit design.

DNA solutions, Nashik has various types of Female precut headers. Check out our complete collection of  Female precut headers.

• Standard Pitch: 2.54mm (0.1 inches), commonly used in breadboards, development boards, and PCBs.


• Dual Row: Two rows of 18 pins each, providing 36 connection points in total.


• Precut: Precut to 2x18 configuration for easy installation without the need for manual trimming.


• Durable Construction: High-quality materials ensure a firm connection with male headers, preventing loose or intermittent contact.


• Easy Installation: Designed for through-hole soldering, enabling straightforward mounting on printed circuit boards


Specifications of 2x18 2.54mm female precut header

• Pin Count: 36 pins (2x18 configuration).


• Pitch: 2.54mm (0.1 inches).


• Current Rating: Typically around 3A (varies by manufacturer).


• Contact Resistance: Generally less than 30 milliohms.


• Insulation Resistance: Greater than 1000MΩ.


• Dielectric Withstanding Voltage: Around 500V AC/minute


Package Includes

• 1 x 2x18 2.54mm female precut header
