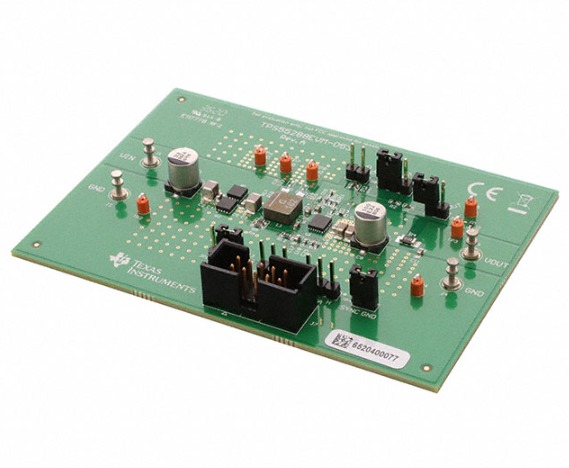

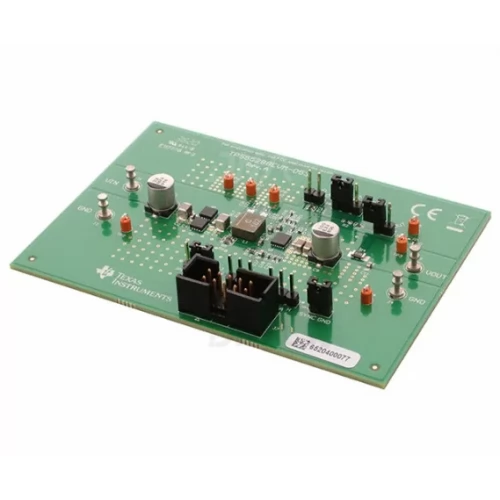

TPS55288EVM-053 Evaluation Board

TPS55288EVM-053 Evaluation Board

The TPS55288EVM-053 is an evaluation module (EVM) for the TPS55288, a high-performance synchronous buck-boost converter with integrated MOSFETs. This converter supports a wide input voltage range and is capable of regulating output voltages in buck, boost, or buck-boost configurations. The evaluation board provides a platform to test and prototype designs using the TPS55288 IC, enabling engineers to assess the converter's performance under various conditions.

DNA solutions, Nashik has various types of Evaluation Board. Check out our complete collection of Evaluation Board.

• Wide Input Voltage Range: Operates from 2.7 V to 36 V, supporting diverse power supply configurations

• Output Voltage Flexibility: Configurable output voltage from 0.8 V to 22 V, accommodating multiple use cases

• Integrated Control: Features integrated MOSFETs for high-efficiency conversion and reduced external component requirements

• High Efficiency: Optimized for efficiency across a broad range of input and output voltages

Specifications of TPS55288EVM-053 Evaluation Board

• Input Voltage Range: 2.7 V to 36 V

• Output Voltage Range: 0.8 V to 22 V

• Maximum Output Current: Up to 6 A

• Switching Frequency: 200 kHz to 2.2 MHz

• Efficiency: Up to 95% depending on the operating conditions

Applications of TPS55288EVM-053 Evaluation Board

• Consumer Electronics

• Telecommunications

• Automotive Systems

• Battery-Powered Devices

• Prototyping and Testing

Package Includes

      1 x TPS55288EVM-053 Evaluation Board
