Ra08H LoRa Wireless Module

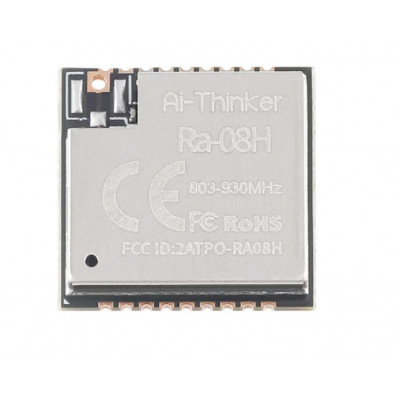

Ai Thinker Ra-08H LoRa Wireless Communication Module

Ra-08H LoRa module for long-distance wireless communication with max transmit power of +22dBm and frequency range of 803MHz to 930MHz.

The Ai Thinker Ra-08H LoRa Wireless Communication Module is designed for ultra-long distance communication using the LoRa technology. With a frequency range of 803MHz to 930MHz, this module features the ASR6601 chipset, which integrates RF transceivers and a 32-bit RISC MCU operating at 48MHz. It supports multiple modulation types, such as LoRa, (G)FSK, BPSK, and (G)MSK, making it versatile for various applications.

The Ra-08H module is ideal for LPWAN applications like smart meters, home automation, and security systems. It provides ultra-low power consumption, with a depth sleep current as low as 0.9uA and high sensitivity of -138dBm at 125KHz SF12. This ensures reliable communication even in remote locations.

With an embedded memory of 128KB FLASH and 16KB SRAM, the Ai Thinker Ra-08H allows for flexible project development. Its compact SMD-18 package and compatibility with various antenna types make it easy to integrate into your projects.

Explore the reliable solutions from DNA in the Wireless - RF category. Check out the Ai Thinker brand for advanced wireless modules and enhance your projects with the latest technology. Check other Wireless - RF that we have in stock.

At DNA, we understand the needs of Indian electronics buyers. If you can't find specific parts, reach out to us! We can import items for you and support both retail and bulk orders. Explore related components like Humidity & Temperature Sensors, Connectors, Digital IC, SMPS, Capacitors, and LCD. Contact Us

Features of Ai Thinker Ra-08H LoRa Wireless Communication Module

• Support LoRa/(G)FSK/BPSK/(G)MSK modulation
• SMD-18 package
• Frequency range: 803MHz ~ 930MHz
• Working voltage: 3.3V
• Maximum transmit power: +22dBm
• High sensitivity: -138dBm @125KHz SF12
• Multiple sleep modes
• Embedded memory: 128KB FLASH, 16KB SRAM

Specification of Ai Thinker Ra-08H LoRa Wireless Communication Module

• Module: Ra-08H
• Package: SMD-18
• Size: 16x16x3.2mm
• Antenna: half-hole pad / IPEX
• UART rate: 110 ~ 4608000 bps
• Crystal frequency: 32MHz
• Power supply: 2.7V ~ 3.6V
• Operating temperature: -40°C ~ 85°C

Applications of Ai Thinker Ra-08H LoRa Wireless Communication Module

• Smart meters
• Home automation
• Security systems
• Remote irrigation systems
• Supply chain and logistics

Related Links for Ai Thinker Ra-08H LoRa Wireless Communication Module

• Other Products from Wireless - RF Category

Package Includes

• 1 X Ai Thinker Ra-08H LoRa Wireless Communication Module
