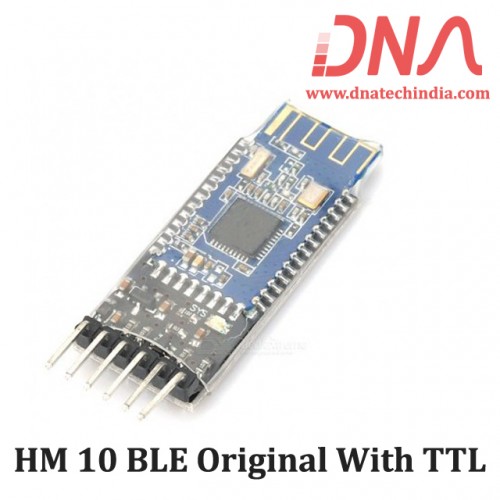

HM 10 BLE Original With TTL

Original HM 10 Bluetooth Low Energy (BLE) 4.0 Module with TTL interface

The HM 10 Bluetooth module combines the powerful and programmable Texas Instruments CC2541 Chipset with the required components to start right away with your BLE development. The module offers an on-board voltage regulator and is TTL-level and 5 V tolerant. The Bluetooth-SoC can be accessed via UART interface and supports AT-Commands for setup. It supports full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to Android or iOS communication projects. This module can be used to replace HC-05, HC-06 and HC-07 devices. This module can also be configured and used as an iBeacon for used with Apple devices.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.

Features of HM 10 BLE Original With TTL

• BT Version : Bluetooth Specification V4.0 BLE

• Send and receive no bytes limit.

• Working frequency : 2.4GHz ISM band

• Modulation method : GFSK(Gaussian Frequency Shift Keying)

• RF Power : -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT Command AT+POWE.

• Speed : Asynchronous : 6K Bytes

• Synchronous : 6K Bytes

• Security : Authentication and encryption

• Service : Central & Peripheral UUID FFE0,FFE1

• Power : +3.3VDC 50mA

• Long range : Open space have 100 Meters with iphone4s

• Power : In sleep mode 400uA~1 .5mA, Active mode 8.5mA.

• Working temperature : –5 ~ +65 Centigrade

• Size : HM-10 26.9mm x 1 3mm x 2.2 mm;
