Product Images are shown for illustrative purposes only and may differ from actual product.

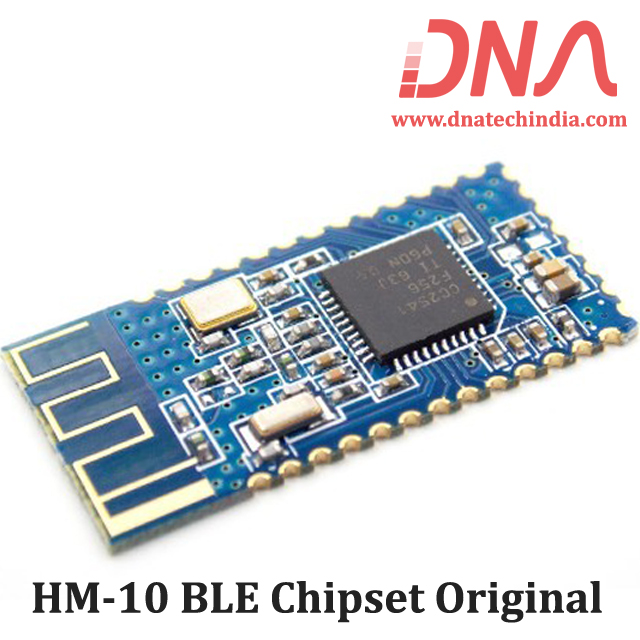

HM-10 BLE Chipset Original

  • Stock: 52
  • SKU: 1098 | DAA614
  • Rs. 1,032.50 (inc GST)
    Rs.875.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

HM-10 BLE Chipset Original

The HM-10 Bluetooth module combines the powerful and programmable Texas Instruments CC2541 Chipset with the required components to start right away with your BLE development.

The module offers an on-board voltage regulator and is TTL-level and 5 V tolerant. The Bluetooth-SoC can be accessed via UART interface and supports AT-Commands for setup. It supports full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to Android or iOS communication projects.This module can be used to replace HC-05, HC-06 and HC-07 devices.This module can also be configured and used as an iBeacon for used with Apple devices.

We have Various sizes of Bluetooth. Check out our complete collection of Bluetooth


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HM-10

  • BT Version : Bluetooth Specification V4.0 BLE

  • Send and receive no bytes limit.

  • Working frequency : 2.4GHz ISM band

  • Modulation method : GFSK(Gaussian Frequency Shift Keying)

  • RF Power : -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT Command AT+POWE.

  • Speed : Asynchronous : 6K Bytes

  • Synchronous : 6K Bytes

  • Security : Authentication and encryption

  • Service : Central & Peripheral UUID FFE0,FFE1

  • Power : +3.3VDC 50mA

  • Long range : Open space have 100 Meters with iphone4s

  • Power : In sleep mode 400uA~1 .5mA, Active mode 8.5mA.

  • Working temperature :–5 ~ +65 Centigrade

  • Size : HM-10 26.9mm x 1 3mm x 2.2 mm;

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
