Product Images are shown for illustrative purposes only and may differ from actual product.

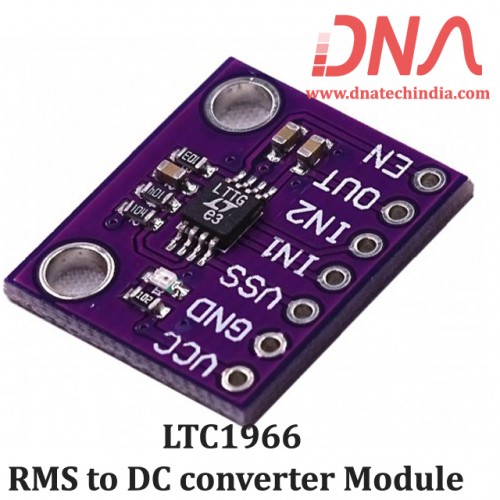

LTC1966 RMS to DC converter Module

  • Stock: 4
  • SKU: 1722 | DAA919
  • Rs. 1,303.90 (inc GST)
    Rs.1,105.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

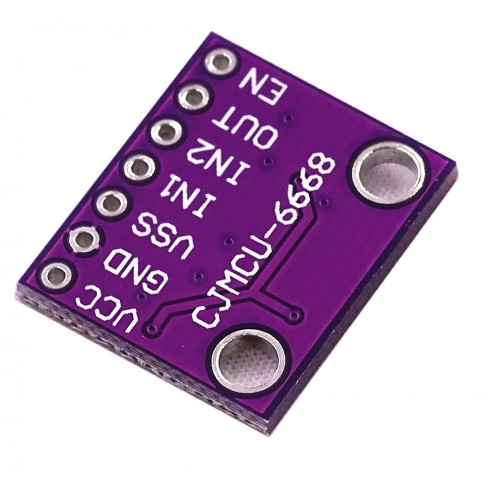

CMJU-6668 LTC1966 accurate micropower Delta Sigma RMS to DC converter

This module is based on Analog Devices LTC1966 single supply RMS to DC Converter IC.

The internal delta-sigma circuitry to use,more accurate, lower power and dramatically more flexible than conventional log-antilog RMS-to-DC converters. The LTC1966 accepts single ended or differential input signals (for EM/RFI rejection) and supports crest factors up to 4. Common mode input range is rail-to-rail. Differential input range is 1 Volt peak, and offers unprecedented linearity. Unlike previously available RMS-to-DC converters, the superior linearity of the LTC1966 allows hassle-free system calibration at any input voltage.

LTC1966 also has a rail-to-rail output with a separate output reference pin providing flexible level shitting.  The LTC1966 operates on a single power supply from 2.7 Volts to 5.5 Volts or dual supplies up to ±5.5 Volts. A low power shut down mode reduces supply current to 0.5uA. The LTC1966 is insensitive to PC board soldering and stresses, as well as operating temperature.

We have Various sizes of Instrumentation Amplifiers. Check out our complete collection of Instrumentation Amplifiers.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LTC1966 accurate micropower delta sigma RMS to DC converter

  • No-Hassle Simplicity :
              – True RMS-DC Conversion with Only One External Capacitor
  • High Accuracy :
              –  0.1% Gain Accuracy from 50Hz to 1kHz
              – 0.25% Total Error from 50Hz to 1kHz
  • High Linearity :
              – 0.02% Linearity Allows Simple System Calibration
  • Low Supply Current : 155uA Typ,170uA Max
  • Ultralow Shutdown Current : 0.1yA
  • Constant Bandwidth
  • Independent of Input Voltage :  800kHz-3dB, 6kHz ±1%

Flexible Supplies :

  • 2.7 Volt to 5.5 Volt Single Supply
  • Up to ±5.5 Volt Dual Supply

Related Links

Package Includes

  • 1 x LTC1966 RMS to DC converter Module

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
