Product Images are shown for illustrative purposes only and may differ from actual product.

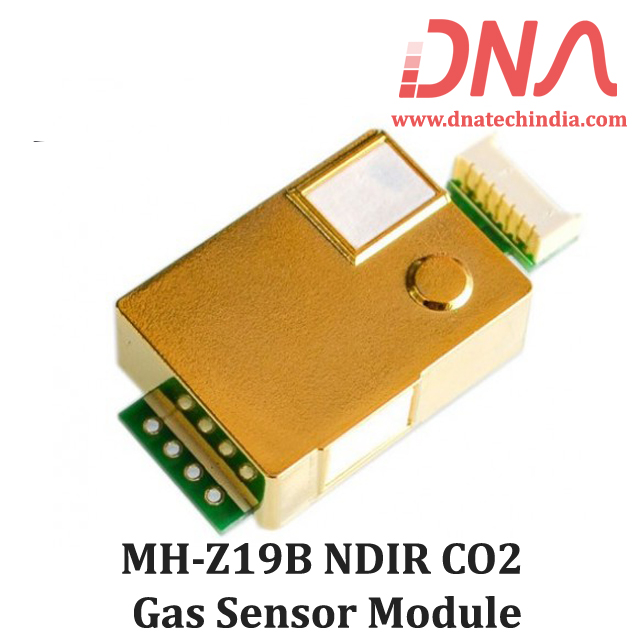

MH-Z19B NDIR CO2 Gas Sensor Module

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-03-03
Brand: Winsen
SKU: 1641 | DAB096

Rs. 2,377.70 (inc GST)
Rs.2,015.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MH-Z19B NDIR CO2 Gas Sensor Module

MH-Z19B NDIR infrared Carbon dioxide gas module

MH-Z19B is a very easy to use Carbon dioxide (CO2) gas sensor module it is used for Air quality Control. It has UART and PWM output so it can directly interfaced to Raspberry pi, Arduino and various other Micro-controllers.

MH-Z19B NDIR infrared gas Sensor module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO 2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has UART output and PWM output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.

We have Various sizes of Gas Sensor Check out our complete collection of Gas Sensor.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications

Product Model : MH-Z19B
Detection gas : carbon dioxide
Operating voltage : 4.5 ~ 5.5V DC
Average current : <60mA (@ 5V supply)
Peak current : 150 mA (@ 5V supply)
Interface level : 3.3V
Measurement range : 0 ~ 1% VOL range optional
Output signals : UART, PWM, analog output (default 0.4 ~ 2V)
Warm-up time : 3min
Response time : T90 <120s
Operating temperature : 0 ~ 50 ℃
Operating humidity : 0 ~ 95% RH (non-condensing)
Board size : 32.17x19.7x5.25mm
Life expectancy : > 5 years

Feature

High sensitivity, high resolution, low power consumption
Provide UART, PWM waveform and other output methods
Temperature compensation, excellent linear output
Excellent stability
Long life
Water vapor interference, not poisoning

Applications

MH-Z19B NDIR infrared gas module is widely used in
HVAC refrigeration
Indoor air quality monitoring.
Smart home appliances
School
Air cleaner

Reference Link

MH-Z19B CO2 Sensor Datasheet
CO2 Temperature and humidity sensor using MH-Z19
Testing MH-Z19 carbon dioxide sensor Module
Wireless DIY air quality Monitoring Station using Raspberry Pi.

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
