XL6019 DC to DC Step Up Boost Module


Write a review | 3 reviews

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-02-27

  • Brand: Generic
  • SKU: 2649 | DAE072

Availability: InStock priceValidUntil: 2026-02-27

  • Rs. 147.50 (inc GST)
    Rs.125.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

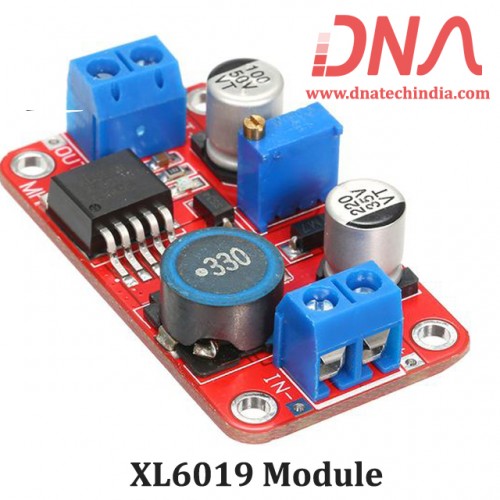

XL6019 DC to DC Step Up Boost Module

XL6019 DC-DC Step Up Adjustable Boost Power Supply Module

XL6019 module is DC-DC boost switching power supply module, use the conventional topology fully integrated constant pressure boost output, the output voltage can change within 5 to 40 V. Its conversion efficiency is up to 90%. This module is based on the XL-Semi XL6019IC. The XL6019 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6019 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages

XL6019 Module is upgraded version of the XL6009 Boost module.

DNA Solutions has large collection of various types of DC to DC Step up (Boost) and Step Down (Buck) Modules. Check our complete collection of Buck Boost DC to DC Converter Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of XL6019 DC to DC Step Up Boost Module

  • Input Range : 3-35 Volts
  • Output Range : 5-40 Volts
  • Conversion Efficiency : More than 90%
  • Switching Frequency : 180KHz
  • Reverse connect protection : Avoid misconnection burn out
  • Board size : 49*28 mm
  • VIN : Voltage input;
  • VOUT : Voltage output;
  • GND : Power ground;
  • Rotate the potentiometer can change voltage : clockwise step-down, counterclockwise boost.
