1-8S LiPo Battery Voltage Tester

  • Stock: 10
  • SKU: 1516 | DAB041

Availability: InStock priceValidUntil: 2025-09-28

  • Rs. 153.40 (inc GST)
    Rs.130.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

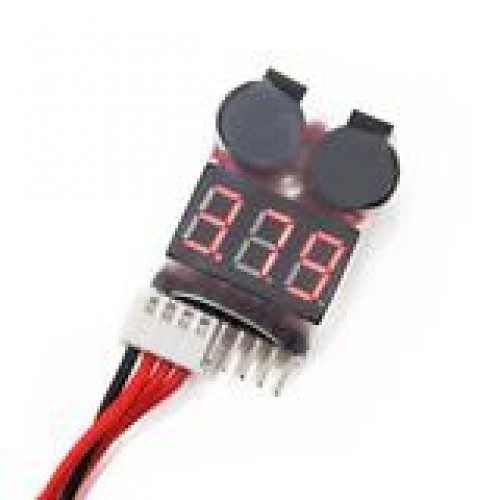

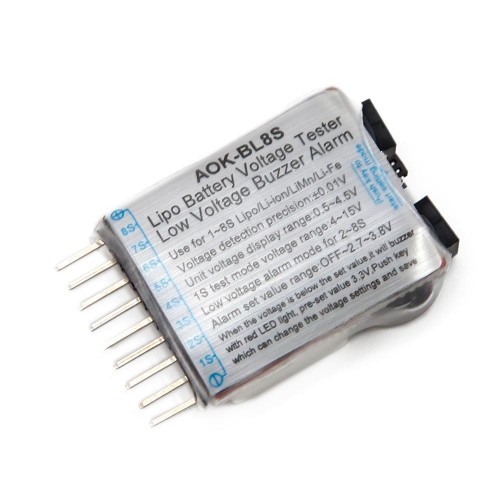

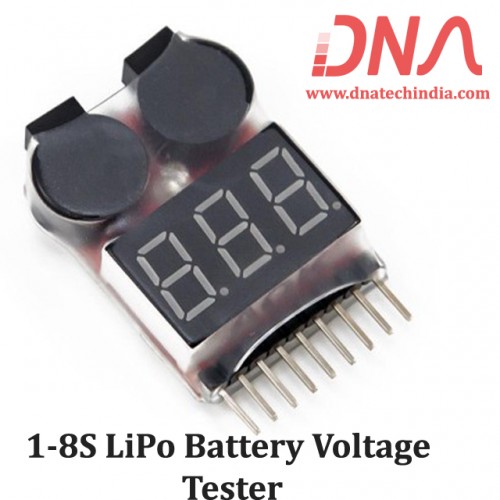

1-8S LiPo Battery Voltage Tester

1-8S LiPo Battery Voltage Tester with Low Volt Alarm Buzzer LED

This a great two in one tool that gives a loud alarm at low voltage and can quickly display battery voltage. Simply plug a 1-8s battery's balance connector into the voltage meter/buzzer, and you will receive an instant readout of the total voltage and an individual reading of each cell.

We have Various sizes of Modules. Check out our complete collection of  Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification of Battery Voltage Tester

  • Brand New & High Quality.
  • Use for 1-8s Lipl/Li-ion/LiMn/Li-Fe.
  • Voltage detection pricision : 0.01V.
  • Unit voltage display range : 0.5V-4.5V.
  • Total voltage display range : 0.5V-36V.
  • 1S test mode voltage range : 3.7v-30v.
  • Low voltage alarm mode for 2-8S.
  • Alarm set value range : OFF-2.7V-3.7V.
  • Push key which can change the voltage settings and save.
  • Size : 3.9cm x 2.4cm x 0.9cm.
  • For 1S-8S / Lipo / Li-ion / Li Mn / Li-Fe Battery.

Features

  • This product is using for detecting 1S-8S lithium battery
  • Detect the voltage of each battery core automatically, support reverse connection protection.
  • To know the working state of your battery anytime, protect the battery from overcharge and over discharge.
  • The red LED will flash,the buzzer will beeping when the voltage is below the set point.
  • The factory default setting is 3.3V, press the button to change the voltage setting, and it will save your current setting automatically.

package Includes

  • 1-8S LIPO BATTERY VOLTAGE TESTER / LOW VOLTAGE BUZZER ALARM

Related Video

  • How to use 1-8S Lipo Battery Voltage Tester




Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
