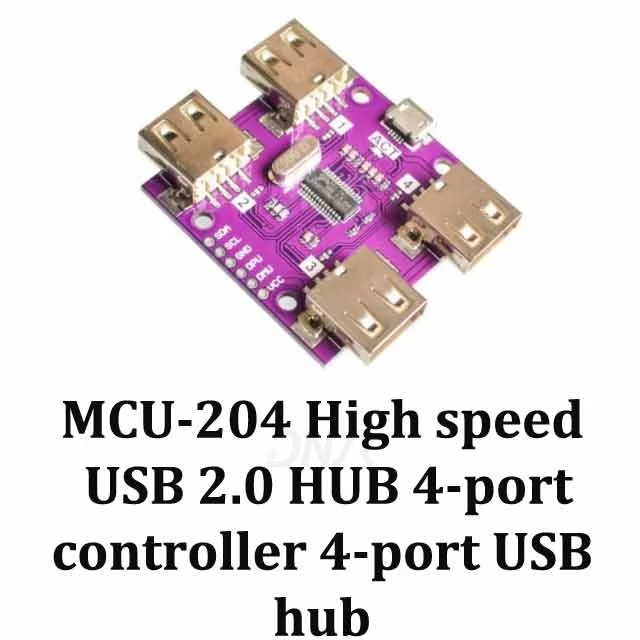

MCU 204 High Speed USB 2.0 HUB 4 Port Controller 4 Port USB Hub

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-03-12
SKU: 3268 | DAD353

Rs. 505.04 (inc GST)
Rs.428.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MCU-204 High speed USB 2.0 HUB 4-Port controller 4-Port USB Hub

MCU-204 High Speed USB 2.0 HUB 4-Port Controller 4-Port USB Hub

The FE1.1s is a highly integrated, high quality,high performance, low power consumption, yet low cost solution for USB 2.0 High Speed 4-Port Hub.It adopts Single Transaction Translator (STT)architecture to be more cost effective. Six,instead of two, non-periodic transaction buffers are used to minimize potential traffic jamming.

The whole design is based on state-machine control to reduce the response delay time no micro controller is used in this chip.To guarantee high quality, the whole chip is covered by Test Scan Chain – even on the high speed (480MHz) modules, so that all the logic components could be fully tested before shipping.Special Build-In-Self-Test mode is designed to exercise all high, full, and low speed Analog Front End (AFE) components on the packaging and testing stages as well.Low power consumption is achieved by using 0.18μm technology and comprehensive power/clock control mechanism. Most part of the chip will not be clocked unless needed.

DNA SOLUTIONS have Various sizes of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MCU-204 High Speed USB 2.0 HUB 4 Port Controller 4 Port USB Hub

Fully compliant with Universal Serial Bus Specification Revision 2.0 (USB 2.0)
Upstream facing port supports High Speed (480MHz) and Full-Speed(12MHz) modes 4 downstream facing ports support High-Speed (480MHz), Full-Speed(12MHz), and Low-Speed (1.5MHz)modes.
Integrated USB 2.0 Transceivers.
Integrated upstream 1.5KΩ pull-up,downstream 15KΩ pull-down, and serial resisters.
Integrated 5V to 3.3V and 1.8V regulator.
Integrated Power-On-Reset circuit.
Integrated 12MHz Oscillator with feedback resister, and crystal load capacitance.
Integrated 12MHz-to-480MHz Phase Lock Loop (PLL).
Single Transaction Translator (STT) –One TT for all downstream ports.
The TT could handle 64 periodic Start Split transactions, 32 periodic Complete-Split transactions, and 6 none-periodic transactions.
Automatic self-power status monitoring;Automatic re-enumeration when Self.

Package Includes

1 x MCU-204 High Speed USB 2.0 HUB 4 Port Controller 4 Port USB Hub

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
