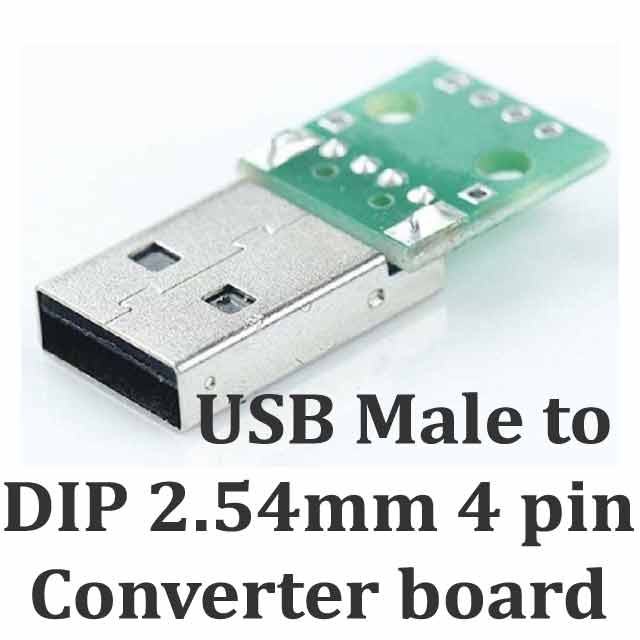

USB Male to DIP 2.54mm 4 Pin Converter Board

USB Male to DIP 2.54mm 4 Pin Converter Board

USB Male to 2.54mm Breakout Board with Direct 4P Adapter Board is a de facto connector widely used in many consumer devices for power or data interface. It has become so popular that you can find compatible cables easily. If you want to add a standard type A USB male plug to your project, this breakout board is for you. As simple as it is, this board breaks out all 4 pins of the USB connector into more manageable 2.54mm pitch soldering holes. You can then solder a 4-pin header to plug into a breadboard or solder wires directly to the holes.

The board measures 15mm x 15mm not including the connector. All connections are a label on the PCB. There are two M2.5 mounting holes for you to mount this breakout board.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

Specification of USB Male to DIP 2.54mm 4 Pin Converter Board.

• USB interface: USB male type A

• USB type A male to DIP (2.54mm pin pitch).

Application of USB Male to DIP 2.54mm 4 Pin Converter Board

• For USB cable testing or breakout

• Connect DIY projects, such as DIY charging station

• Breaks out a USB wiring. Very useful

• Distribute power from a power supply unit to several devices (HDD in a NAS)

• Using the board to connect sensors to USB cables. Also using to measure current usage of various projects.

• Makes connecting everything up without much effort at all.

• Easy to use usb connector, practical for projects

• This module can easily convert power and data to conventional DIP 2.54mm pin

• It is suitable for breadboard and PCB experiment board DIY projects

Package Includes

1 x USB Male to DIP 2.54mm 4 pin Converter board
