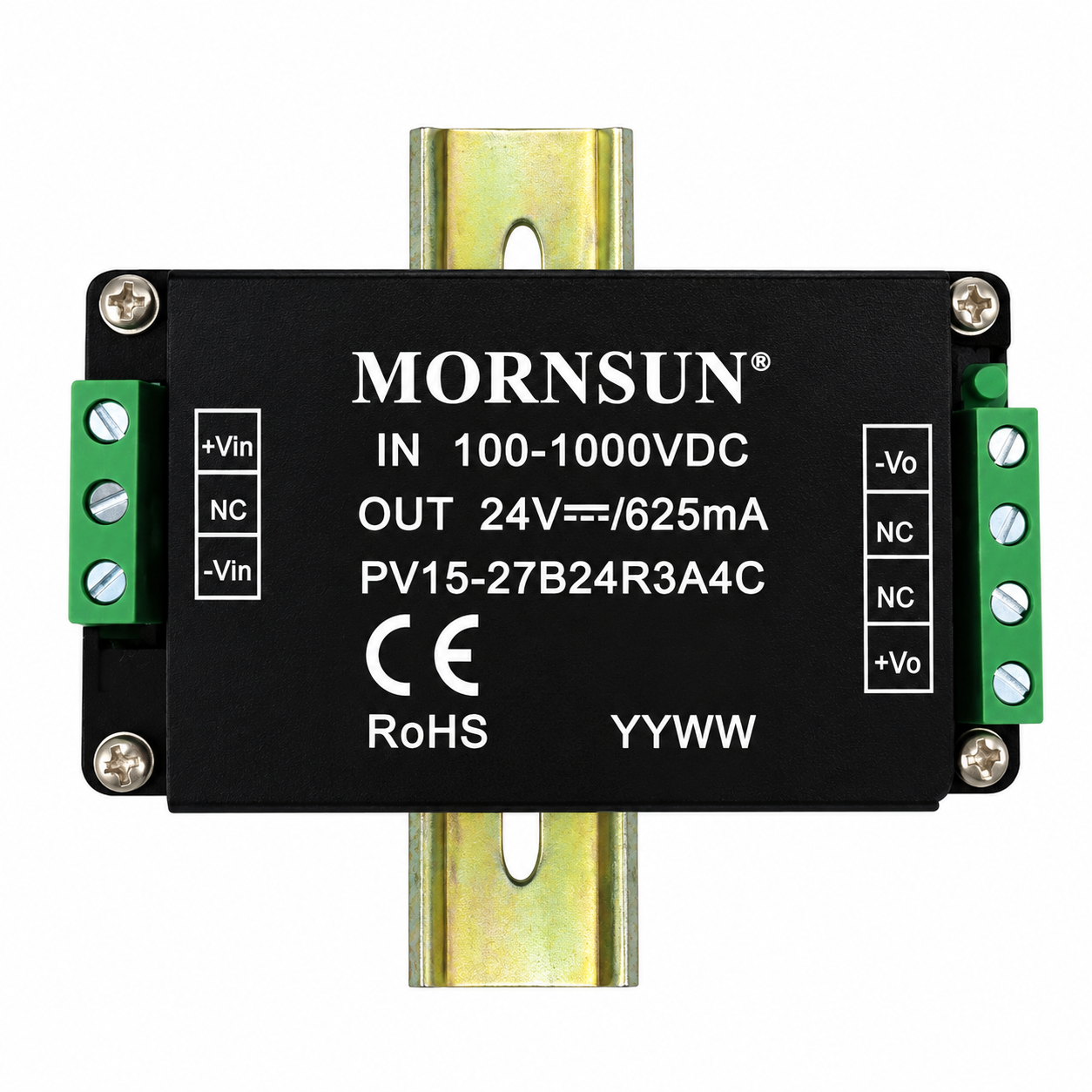

Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

  • Stock: 30

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 7825 | DAH609

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 3,056.20 (inc GST)
    Rs.2,590.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

PV15-27B24R3A4C isolated, regulated DC/DC converter module with 100–1000 VDC input, 24 VDC output and 15 W rated power.

The Mornsun PV15-27B24R3A4C is an isolated DC/DC converter module that changes a 100–1000 VDC input to a regulated 24 VDC output. It has a rated output power of 15 W for systems that need a low-voltage supply from a high-voltage DC line.
The wide input range supports a broad range of DC supply levels. Input-to-output isolation separates the two sides of the conversion. Built-in protection responds to reverse polarity, short circuits, over-current and over-voltage. The A4C version uses DIN-rail mounting and relies on free-air convection for cooling.
Use this 24 V DC converter for photovoltaic systems, power generation, energy storage or inverters. Its isolated output can support control and auxiliary power needs in high-voltage DC systems.
DNA stocks Mornsun DC to DC Converter Modules for electronics projects and industrial power designs. Explore this 24 V isolated converter and other options in the range. Check other DC to DC Converter Modules that we have in stock
Buying electronics in India? Contact DNA if you cannot find a part. We support imports and retail or bulk orders. You can also ask about Analog ICs, development boards, HMI displays, programmers, resistors and DC to DC Converter Modules. Contact Us

Features of Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

  • Isolated input-to-output conversion
  • Regulated DC output
  • Input reverse-polarity protection
  • Self-recovering short-circuit and over-current protection
  • Output over-voltage protection
  • DIN-rail mounting with free-air convection cooling

Specifications of Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

  • Input voltage range: 100–1000 VDC
  • Nominal output voltage: 24 VDC
  • Rated output current: 0.625 A
  • Rated output power: 15 W
  • Operating temperature: −40 to +70 °C
  • Input-to-output isolation: 4000 VAC minimum for a 1-minute electric-strength test
  • Efficiency: 83% typical at 200 VDC input
  • Dimensions: 96.1 × 54.0 × 36.6 mm

Applications of Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

  • Photovoltaic systems
  • Power generation
  • Energy storage
  • Inverters

Related Links for Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

Package Includes

  • 1 X Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module
