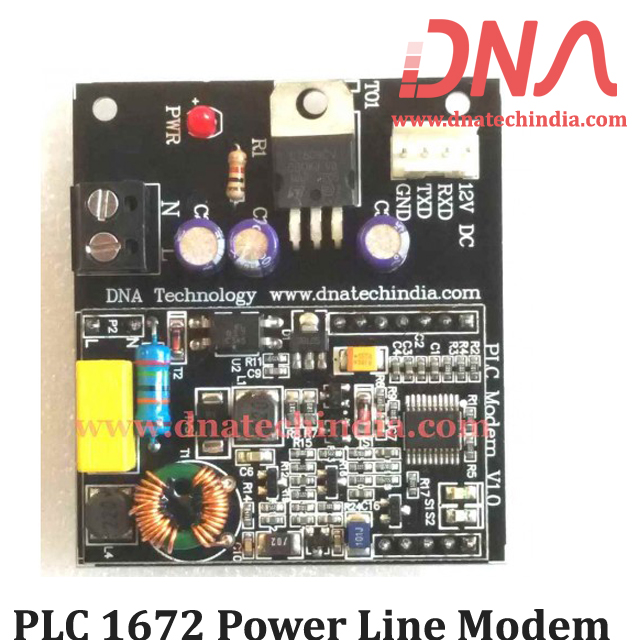

PLC 1672 Power Line Communication Modem

Power line Modem is a communication module (Also called as PLC Module) which sends data on the 230 Volt mains power lines. Power line communication module basically uses the existing power lines to transfer both AC power as well as data simultaneously. This form of communication is also known as power-line carrier, power-line digital subscriber line (PDSL), mains communication, power-line telecommunications, or power-line networking (PLN).
PLC1762 Power Line modem can directly be interfaced to any of 8051, PIC, AVR or ARM microcontrollers. It can also be directly interfaced to Arduino and Raspberry pi. This is an easy to use plug and play power line communication module. No need for settings of any type just connects it to the mains, power it up and you are ready to go.
The communication is quite simple and any serial data at 9600 bps can be easily transmitted via power line. The interfacing is also quite simple just connect your controllers Tx line to Modules Rx line and the controllers Rx line to the Modules Tx line and you are ready to go. No need of any settings or anything just a simple plug and play module.
Normally the data transfer rate over power line is 100 bytes/Second (bps) i.e. though it takes data at 9600 bps from controller it can send data over the power line only at 100 bps. So when you are transmitting data serially please make sure the there is a delay of 5 ms after each byte.
This Power Line Communication modem used FSK modulation technique with a center frequency of 72 Khz. The module has onboard 5volt voltage regulator so you can provide external supply of 12-24 Volt DC. We recommend 12 volt supply.On board LED’s (S1 & S2) are also provided for debugging process.

• S1 : A Green LED which blinks whenever data is being sent over power line

• S2 : A Red LED which blinks whenever data is received over power line

We have Various sizes of Modules. Check out our complete collection of Modules

Features of PLC1672 Power Line Communication Module

• Power Supply : DC 12-24 Volt (12 Volt recommended)

• Max current 200ma

• Default Baudrate of 9600.

• Communication in half duplex mode.

• Working environment : 230V 50/60Hz

• Communication distance : 150m

• Power line carrier frequency : 72kHz

• Modulation and demodulation mode : FSK

• Unix Connector Provided for easy screwing of power line cable.

• Relimate connector provided for easy interfacing with your circuit.

Applications of Power Line Communication Module

Power Line communication Modules are used for different applications right from simple home automation to internet access. Here are some of the basic applications of Power line communication Modem

• Home Automation

• Data Acquisition System

• Automatic Meter Reading (AMR)

• Lighting Control
