Product Images are shown for illustrative purposes only and may differ from actual product.

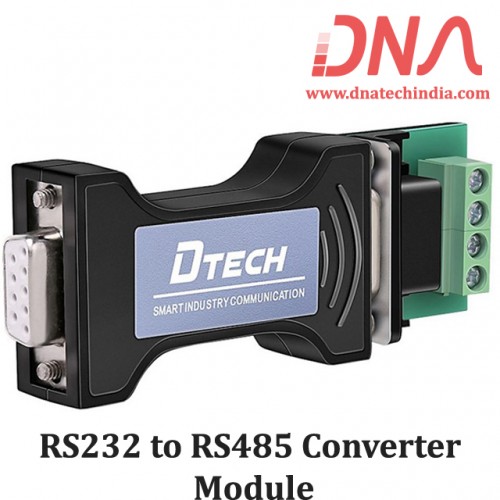

RS232 to RS485 Converter Module
- Stock: 12
- SKU: 2797 | DAE395
-
Rs. 421.26 (inc GST)
Rs.357.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

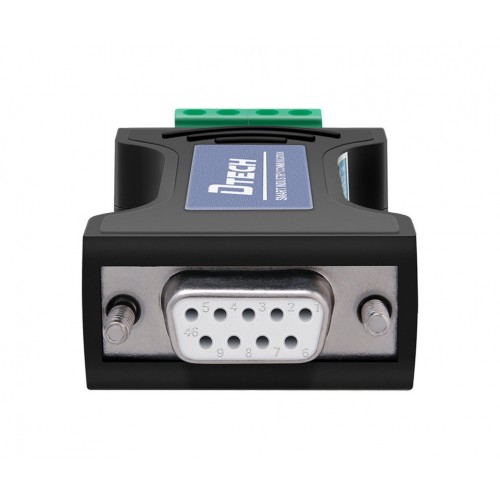

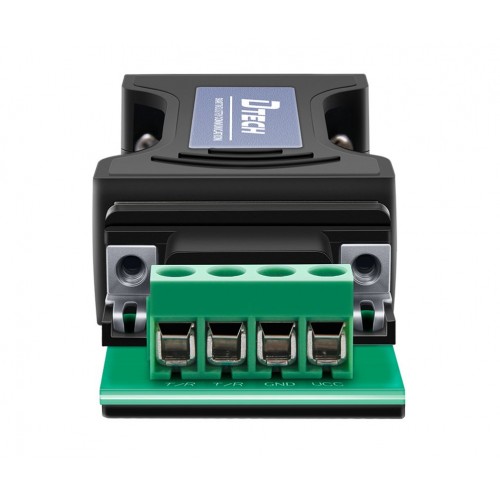

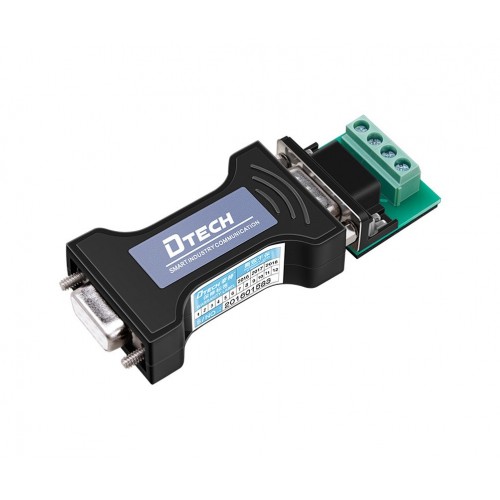

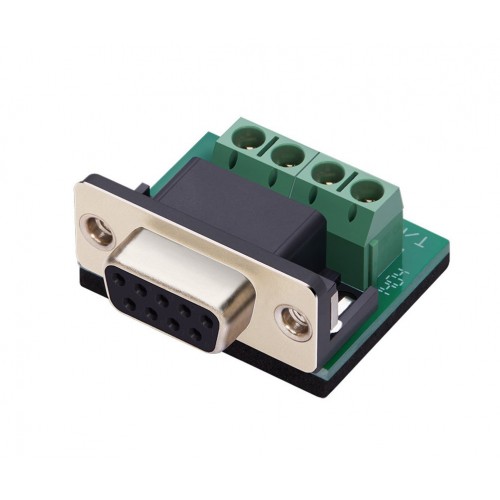

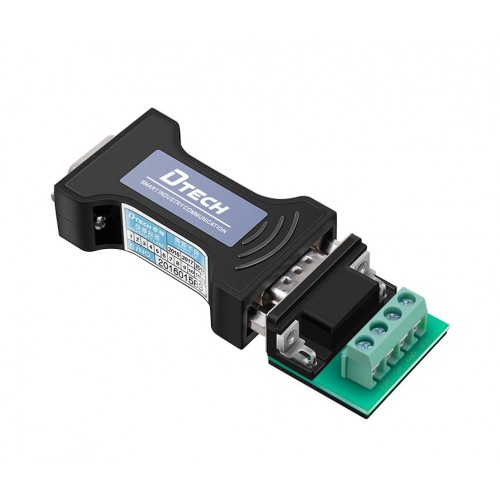

Industrial Grade RS232 to RS485 Converter Module
RS232 to RS485 Converter Adapter for Industrial Long Haul Serial Communication Supports 600W Anti-surge and 15KV Static Protection
RS232 to RS485 converters are mostly used in industrial and commercial environments. The reason is that the RS485 converter can be used for multi-drop networks, meaning that you for example can connect multiple RS485 devices to one computer. Up to 32 devices can be connected in one network to communicate on a single pair of wires (plus a ground wire). This type of communication is called half-duplex communication. Most quality RS485 converters can communicate in this manner of up to 4000 feet (1200 meters). The RS485 converter is also fairly resistant to noise which is one more reason why it is favored in industrial environments.
Guard Your Value Equipment
A built-in transient voltage suppressor (TVS) supports 600W anti-surge and 15KV static protection, effectively guard your value devices from the hazards of transient surges, lightning.
No Driver Required
Auto control data flow direction of I/O circuit feature makes it fully plug-and-play.
Port-Power
No external power supply required, it is port-powered from RS232 data lines and low consumption electricity.
We have Various sizes of Adaptor. Check out our complete collection of Adaptor.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specification of RS232 to RS485 Converter Module
- Standard : EIA/TIA RS232C / RS485(DTECH)
- Baud Rate : 300bps - 115.2kbps
- Working Mode : 2 wire asynchronous half-duplex
- Communication Mode : Point to Point, Point to Multipoint
- Transmission Media : Twisted Pair (Wire diameter >= 0.5mm) or Shielded wire
- Transmission Distance : RS232 Interface: up to 50ft (15m); RS485 Interface: up to 4000ft (1.2km)
- Static Protection : RS232 Interface, 15KV
- Surge Protection : RS485 Interface, Each wire 600W
Package Includes
- 1 x RS232 to RS485 Converter Module
