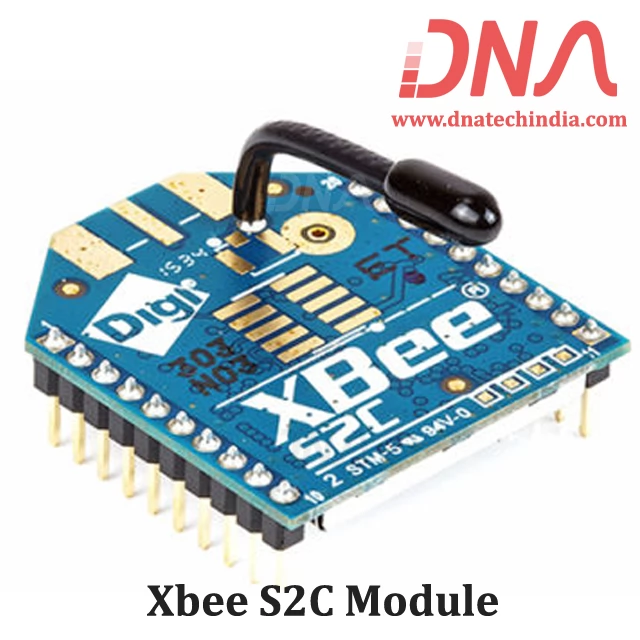

Xbee s2c Module

Digi International's XBee RF modules provide OEMs with a common footprint shared by multiple platforms, including multipoint and ZigBee®/Mesh topologies, and both 2.4 GHz and 900 MHz solutions.OEMs deploying the XBee can substitute one XBee for another, depending upon dynamic application needs, with minimal development, reduced risk, and shorter time-to-market.

XBee 802.15.4 RF modules are ideal for applications requiring low latency and predictable communication timing. Providing quick, robust communication in point-to-point, peer-to-peer, and multipoint/star configurations, XBee 802.15.4 products enable robust end-point connectivity with ease. Whether deployed as a pure cable replacement for simple serial communication, or as part of a more complex hub-and-spoke network of sensors, XBee 802.15.4 RF modules maximize performance and ease of development. XBee 802.15.4 modules seamlessly interface with compatible gateways, device adapters, and range extenders, providing developers with true beyond-the-horizon connectivity.

The updated XBee S2C 802.15.4 modules are built with Silicon Labs' EM357 SoC and offer improved power consumption, support for over-the-air firmware updates, and provide an upgrade path to DigiMesh® or ZigBee mesh protocols if desired. This module comes with a wire antenna, its the same price as a chip antenna but 50% more range because of the improved antenna, awesome!

We have Various sizes of Zigbee. Check out our complete collection of Zigbee.

Features Xbee s2c Module

• Out-of-the-box RF communications, no configuration needed

• Point-to-multipoint network topology

• 2.4GHz for worldwide deployment

• Common XBee footprint for a variety of RF modules

• Industry leading sleep current of sub 1uA

• Firmware upgrades via UART, SPI or over the air

• Migratable to DigiMesh and ZigBee PRO protocols

• Transceiver chipset: Silicon Labs EM357 SoC

• Data Rate RF: 250Kbps, serial up to 1Mbps

• Indoor/urban range: 200-ft. (60m) 300-ft. (90m)

• Outdoor/RF line-of-sight range: 4000-ft. (1200m) 2 miles (3200m)

• Transmit power: 3.1mW (+5dBm)/6.3mW (+8dBm) boost mode 63mW (+18dBm)

• Receiver sensitivity: (1% PER) -100dBm/-102dBm boost mode -101dBm

• Serial Data Interface: UART, SPI

• Configuration Method: API or AT commands, local or over-the-air (OTA)

• Frequency Band: ISM 2.4GHz

• Form factor: through-hole, surface mount

• Hardware: S2C

• ADC inputs: (4) 10-bit ADC inputs

• Digital I/O: 15
