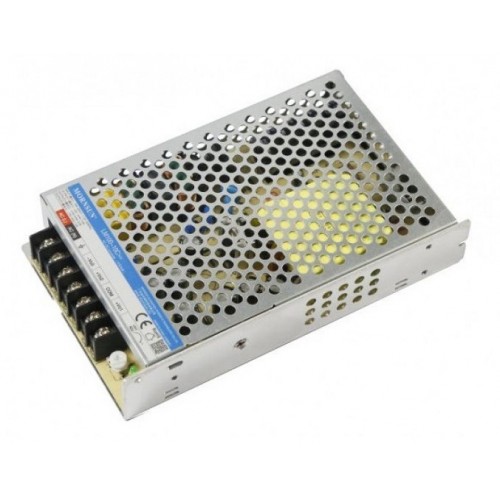

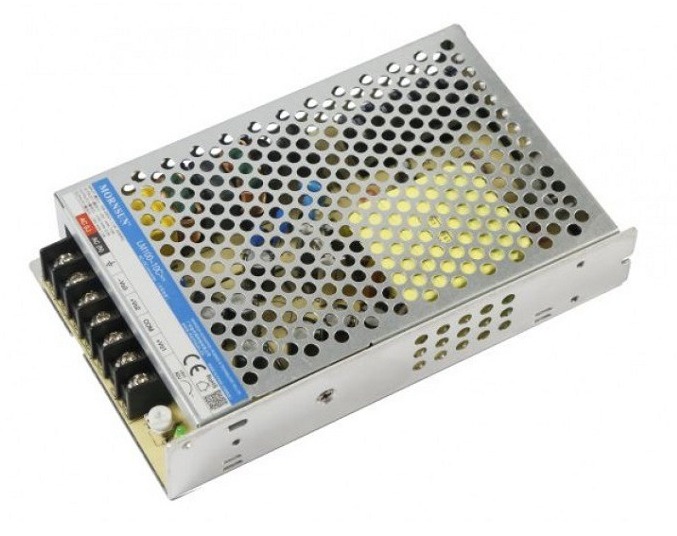

Mornsun LM100-10C051212-35 Enclosed Triple-Output AC/DC Power Supply

Mornsun LM100-10C051212-35 Enclosed Triple-Output AC/DC Power Supply

Mornsun LM100-10C051212-35 enclosed AC/DC supply with three outputs, 94 W rated power and 90–264 VAC or 120–370 VDC input.

The Mornsun LM100-10C051212-35 is an enclosed AC/DC switching supply that converts AC or DC input into three independent rails: +5 V, +12 V and -12 V. Its 94 W rating suits systems that need several supply levels from one triple-output power supply.

Free-air convection cools the unit without a fan. The metal case suits equipment installations, while short-circuit, over-current and over-voltage protection support safe operation. A power-on LED provides a quick status check.

Use this Mornsun AC/DC power supply in industrial control equipment, instrumentation, smart home equipment and building equipment. Its separate rails support systems that need both positive and negative voltages. The wide input range accepts AC or DC power, making it a practical 94 W enclosed power supply for these applications.

DNA stocks Mornsun power supplies for electronics projects and equipment needs. Explore the Mornsun SMPS range to find a supply that fits your design. Check other Mornsun SMPS that we have in stock

Indian electronics buyers can contact DNA if they cannot find a part. We support imports and retail or bulk orders. Ask us about related items such as Development Module, Analog IC, SMPS or Nextion Display. Contact Us

Features of Mornsun LM100-10C051212-35 Enclosed Triple-Output AC/DC Power Supply

• Three independent output rails for separate loads
• Short-circuit, over-current and over-voltage protection
• Free-air convection cooling without a fan
• Power-on LED indicator
• Enclosed metal case

Specifications of Mornsun LM100-10C051212-35 Enclosed Triple-Output AC/DC Power Supply

• Rated output power: 94 W
• Rated outputs: +5 V at 8.0 A, +12 V at 3.5 A, and -12 V at 1.0 A
• Input voltage: 90–264 VAC or 120–370 VDC
• Input frequency: 47–63 Hz for AC input
• Operating temperature: -30°C to +70°C
• Input-to-output isolation test voltage: 3000 VAC for 1 minute
• Dimensions: 159.00 × 97.00 × 30.00 mm
• Efficiency: 84% typical at 230 VAC

Applications of Mornsun LM100-10C051212-35 Enclosed Triple-Output AC/DC Power Supply

• Industrial control equipment
• Instrumentation
• Smart home equipment
• Building equipment

Related Links for Mornsun LM100-10C051212-35 Enclosed Triple-Output AC/DC Power Supply

• Mornsun LM100-10C051212-35 Enclosed Triple-Output AC/DC Power Supply Datasheet

• Other Products from Mornsun SMPS Category

Package Includes

• 1 X Mornsun LM100-10C051212-35 Enclosed Triple-Output AC/DC Power Supply
