Product Images are shown for illustrative purposes only and may differ from actual product.

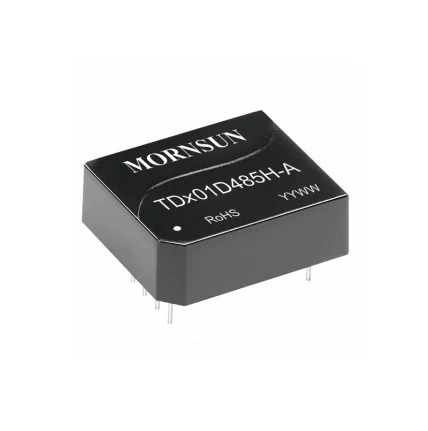

Mornsun TD501D485H-A Isolated RS485 Transceiver Module

  • Stock: 100

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 3744 | DAF156

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 611.24 (inc GST)
    Rs.518.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun TD501D485H-A Isolated RS485 Transceiver Module

TD501D485H-A isolated RS485 transceiver module converts 5 V UART to RS485, with automatic half-duplex switching, a 115200 bps maximum rate and 2.5 kVDC isolation.

The Mornsun TD501D485H-A is an isolated RS485 transceiver module that converts logic-level UART signals to differential RS485 signals. It supports a maximum transmission rate of 115200 bps and provides 2.5 kVDC isolation between input and output.
The module uses automatic transmit and receive switching for half-duplex communication. Its integrated isolated DC-DC converter supports the isolated side, while RS485 bus ESD protection helps guard the interface. The UART interface is designed for a 5 V logic supply.
Use this 5 V UART to RS485 module to connect equipment to RS485 networks. It supports up to 32 nodes on one bus, making it suitable for network links that need signal conversion and isolation in one module.
DNA supplies Mornsun Communication Modules for engineers and electronics buyers in India. Explore this isolated RS485 interface and related options for your next design. Check other Communication Modules that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders. We can also help you find related Digital ICs, development boards, microcontrollers, diodes, resistors and super capacitors. Contact Us

Features of Mornsun TD501D485H-A Isolated RS485 Transceiver Module

  • Converts UART logic signals to differential RS485 signals
  • Automatic transmit and receive switching supports half-duplex communication
  • Integrated isolated DC-DC converter
  • Input and output are mutually isolated
  • RS485 bus interface includes ESD protection
  • Supports up to 32 nodes on one bus

Specifications of Mornsun TD501D485H-A Isolated RS485 Transceiver Module

  • Power supply input voltage: 4.75–5.25 VDC (5 V nominal)
  • Maximum transmission rate: 115200 bps
  • Isolation voltage: 2.5 kVDC (1-minute electric-strength test)
  • Operating temperature: -40°C to +85°C
  • Maximum operating current: 70 mA
  • UART interface: +5 V only (TXD and RXD pin current ≤2 mA)
  • Package: DIP10

Applications of Mornsun TD501D485H-A Isolated RS485 Transceiver Module

  • RS485 network connections

Related Links for Mornsun TD501D485H-A Isolated RS485 Transceiver Module

Package Includes

  • 1 X Mornsun TD501D485H-A Isolated RS485 Transceiver Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
