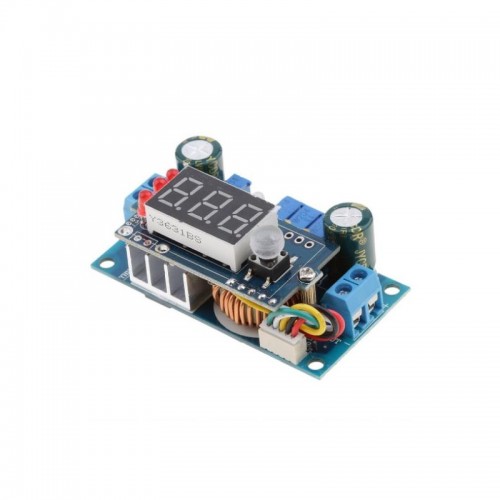

MPPT Solar Charger Module 12 Volt

MPPT Solar charger Module 12 volt

MPPT Solar charger Module 12 volt

DNA solutions, Nashik has various types of Power Module's. Check out our complete collection of  Power Module's.

• Multifunction double display: input voltage, output voltage, output current Input voltage: 6-36V


• Output voltage:


  25-32V continuously adjustable (the default output 5V)

• MPPT voltage setting range: 6-36V


• Output current range: 0.05-5A (The default output current is 3A)


• Turn lights output range: 0.01-5A (default turn lamp current 0.3A) the current range will be a little difference because the parts parameter error.


• Operating temperature: -40 to + 85 degree


•  Operating frequency: 180KHz


• Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)


• Short circuit protection: Yes


• Module Name: 5A buck constant voltage constant current MPPT


• Module Properties: Non-isolated buck module (BUCK)


•  Over temperature protection: (automatically shut off the output after overtemperature)


• Input reverse polarity protection: None, (if necessary, please add the string into the diode)


• Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!


• Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection.


•  Installation: 4 pcs 3mm screws


•  Connection: IN is the input, OUT is output


•  Module dimensions:60 x 31 x 22 mm(without meter)

Applications

•  It can power supply for electronic devices.

• For a variety of battery charge, can observe the state of charge.

•  Charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery.

• It can support high-power LED.

• As a car power supply , it can for your cell phone or digital products supply

• DIY a Voltage Regulator, with constant current function, Short-circuit proof, can protect the load.

Package Includes

1 x MPPT Solar charger Module 12 volt
