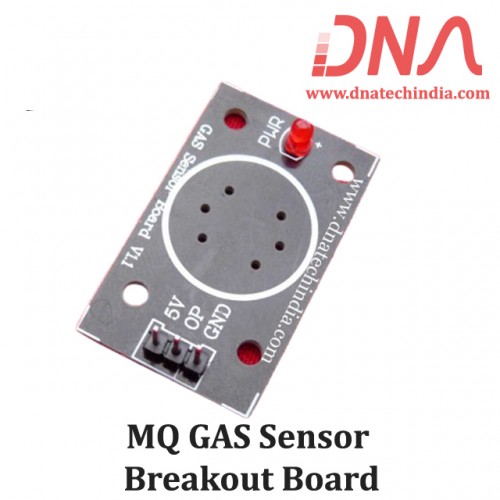

MQ GAS Sensor Breakout Board


Write a review | 0 reviews

  • Stock: Out Of Stock
  • SKU: 0689 | DAA997
  • Rs. 17.70 (inc GST)
    Rs.15.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

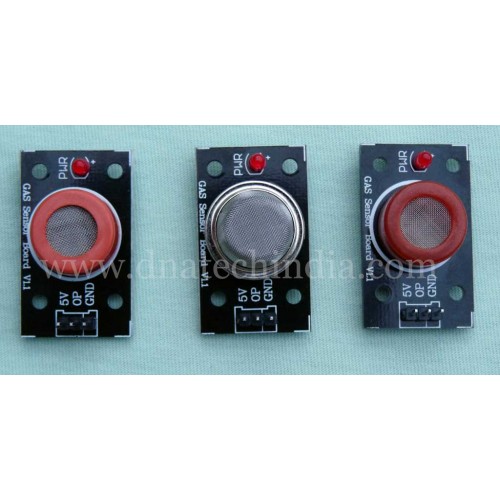

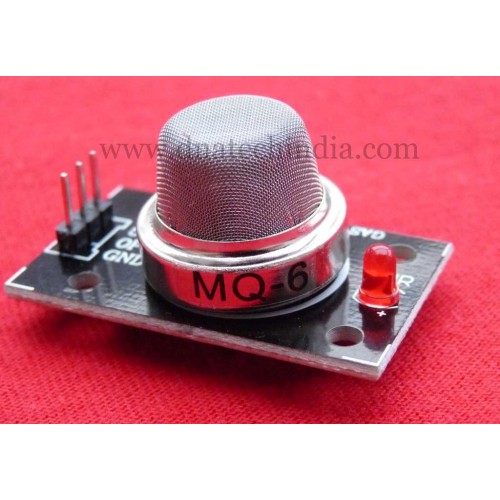

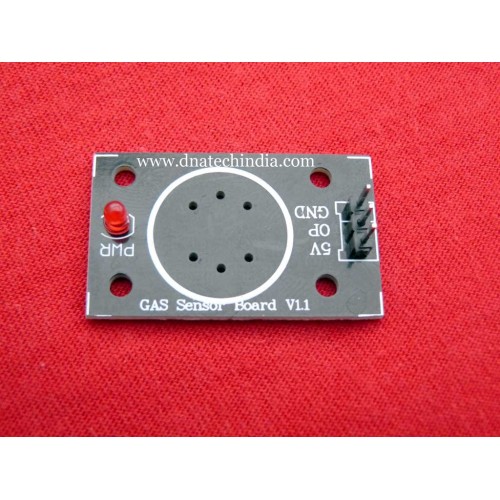

MQ Series Gas Sensor Breakout Board

Mounting of MQ Series GAS sensors is a big headache.

The footprint of the Gas Sensors are very different and they can not be inserted in breadboard or in zero or dotted boards. To solve this problem we have developed a simple low cost MQ Series Gas Sensor breakout Board.

The Gas Sensor Breakout Board can be easily interfaced to your circuit via a 3 pin header header. The three pin required for interfacing with the board are:

  • Vcc i.e 5 volt supply required for the Gas sensor
  • Gnd : Ground
  • OP : Output. analog output which can be directly interfaced to your circuit.

We have Various sizes of Gas Sensor Check out our complete collection of Gas Sensor.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of GAS Sensor Breakout Board

  • On Board Power LED
  • Four 3mm Mounting holes for easy mounting
  • On board Sensitivity resistor also called as Load resistor of 10K
