MQ6 LPG GAS SENSOR

  • Rs. 120.36 (inc GST)
    Rs.102.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

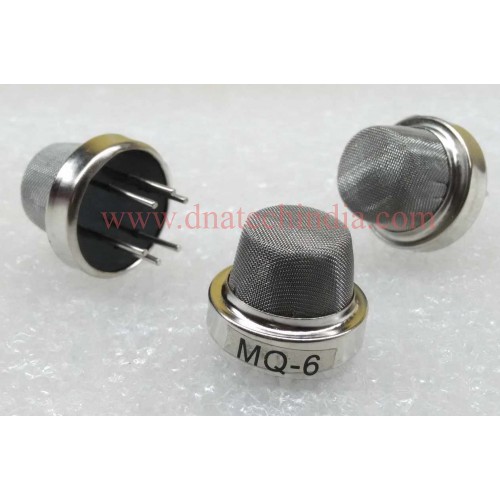

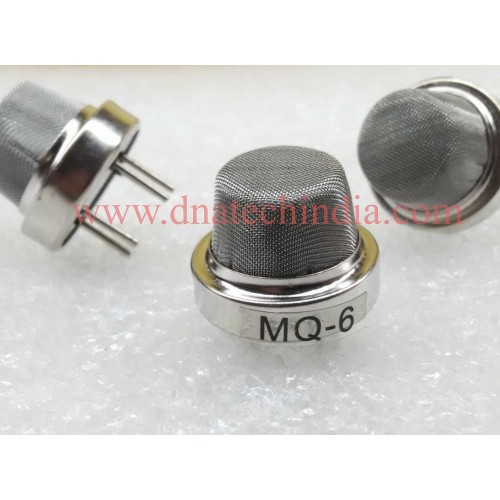

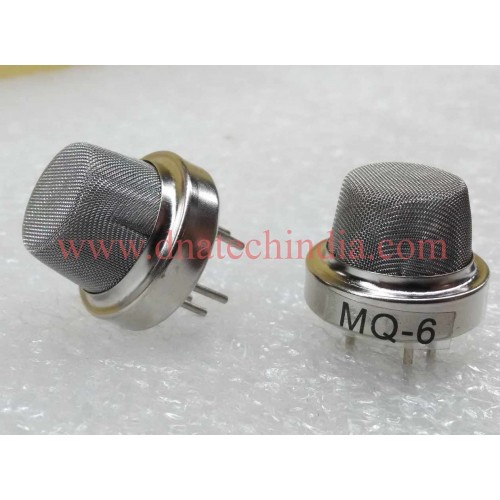

MQ6 LPG GAS SENSOR

MQ6 is LPG Gas Sensor. MQ6 Gas Sensor is used to detect the presence of a dangerous LPG leak in your Home, car or at a service station, storage tank environment.

The sensor has excellent sensitivity combined with a good response time. The sensor’s conductivity is more higher along with the gas concentration rising.The sensor can also sense iso-butane, propane, LPG and cigarette smoke. The sensor could be used to detect different combustible gas, especially Methane.

Features of MQ6 LPG GAS SENSOR

  • High Sensitivity to LPG, iso-butane, propane
  • Small sensitivity to alcohol, smoke
  • Good sensitivity to Combustible gas in wide range
  • High sensitivity to Propane, Butane, LPG and also response to Natural gas
  • Long life and low cost
  • Simple drive circuit

Specification of MQ6 LPG GAS Sensor

  • Detection Range : 100 - 10,000 ppm iso-butane propane
  • Fast Response Time : <10s
  • Simple drive circuit
  • Heater Voltage : 5.0V
  • Dimensions : 18mm Diameter, 17mm High excluding pins, Pins - 6mm High

Applications of MQ6 LPG Gas Sensor

  • Gas leak detection system
  • Fire/Safety detection system
  • Domestic gas leakage detector
  • Industrial Combustible gas detector
  • Portable gas detector
  • Gas leak alarm
  • Gas detector
