Product Images are shown for illustrative purposes only and may differ from actual product.

Foca Max

  • Stock: 1
  • Brand: ITead
  • SKU: 2182 | DAB552
  • Rs. 1,038.40 (inc GST)
    Rs.880.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

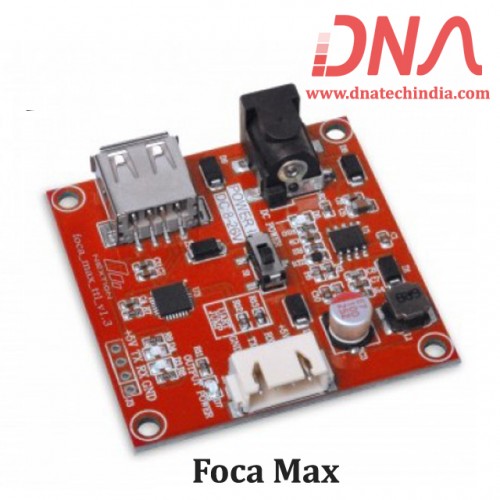

Foca Max - 5 Volt 2 Amp Output USB To TTL Serial Converter Board

Foca Max - 5 Volt 2 Amp Output USB To TTL Serial Converter Board with stable power supply for all series and sizes of Nextion HMI display

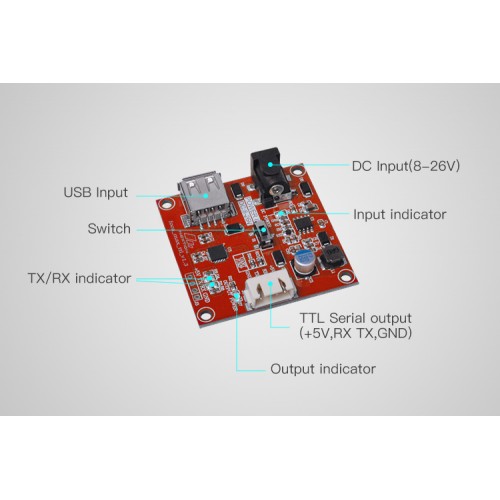

Foca Max is a USB to TTL serial converter board with maximum 5.5V2A output. For USB to TTL conversion, the Foca Max can be power supplied by USB only or USB together with external DC 8-26 Volt, The USB and external DC power supplies are isolated by using a diode (SS34) to avoid the current back flowed between them.
Note : As for the Nextion HMI display size less than 4.3'', you can only use the USB for power supply, size large than 4.3'', a external DC 8 volt to 26 Volt for power supply is recommended.

We have Various sizes of Nextion Display. Check out our complete collection of Nextion Display.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Foca Max

  • SILABS CP2102 chip, maximum baud rate of 2Mbps

  • High-power and energy-efficient DC-DC converter chip TPS54331 with 8 to 26 Volys wide voltage input and 5V2A output

  • Solid capacitors, high Q inductors components

  • LED indicators for input/output power and TX/RX communication

  • Small voltage ripple within 100mA

  • Plug and Use, no firmware programming required

Specification of Foca Max

  • Model name : Foca Max
  • USB Voltage input : 5 - 5.5 Volts
  • USB type : USB 2.0
  • DC Input : DC 8-26 Volts
  • DC Power Socket : DC-005 (5.5 * 2.1 mm)
  • Voltage output : 5 - 5.5 Volts
  • Current output : 2 Ampere(maximum)
  • Voltage ripple : <100m Volt
  • Working temperature : -20°C ~ 70°C
  • PCB size : 50mm*50mm*1.6mm
  • Max baud rate : 2Mbps
  • TTL level : 3.3 Volts

Additional Information of Foca Max

  • EWeLink Support : No
  • Module Type : No
  • Weight : 101 g
  • Model : IM1906200011

  • Board Size : 50mm*50mm*1.6mm
  • Version : 1.0
  • Operation Level : Digital 3.3 Volt

In the box

  • Foca Max*1
  • USB wire*1
  • XH2.54 4P wire*1

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
