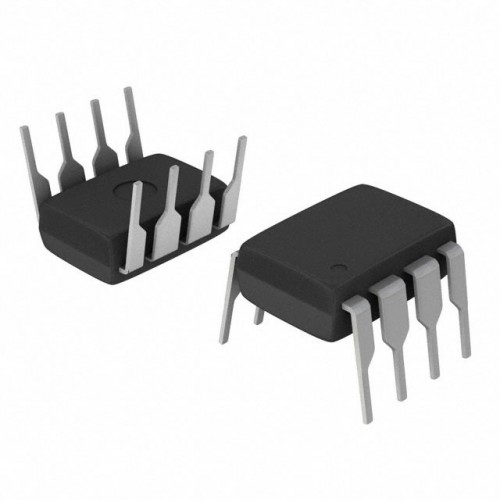

NJM2103L System Reset IC

  • Stock: Out Of Stock
  • SKU: 7340 | DAG278
  • Rs. 186.91 (inc GST)
    Rs.158.40 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

NJM2103L System Reset IC

NJM2103L Single-Channel Voltage Detector System Reset IC

The NJM2103L Single-Channel Voltage Detector SYSTEM RESET is supply voltage supervisory IC to detect the abnormal conditions, such as shut down of all supply voltages at once, or sudden voltage down and then generate the reset signal. It supervises both 5V supply voltage and the voltage optionally set up. It is widely used in microcontroller and processor-based systems to provide a reliable power-on reset or brown-out protection.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of NJM2103L System Reset IC

  • Precise Detection of Supply Voltage Down (VSA=4.2V±2.5%)
  • Possible Detection of Optional Voltage Down (VSB=1.22V±1.5%)
  • Possible Detection of Optional Over-loading
  • Low Operating Current (ICC≦560µA@VSB=5V)
  • Reference Voltage can be taken out.
  • Low Reset Validated Voltage (V+=0.8V Typ.)
  • Voltage Detection with Hystersis Feature
  • Package Outline DIP8, DMP8, SIP8Bipolar Technology

Applications of NJM2103L System Reset IC

  • Microcontroller Power-On Reset
  • Battery Voltage Monitoring
  • Brown-Out Protection
  • Portable Electronics
  • Power Supply Sequencing

    Package Includes

    • 1 x NJM2103L System Reset IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
