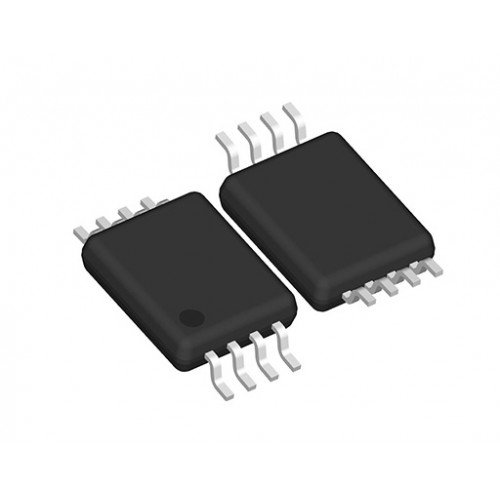

Product Images are shown for illustrative purposes only and may differ from actual product.

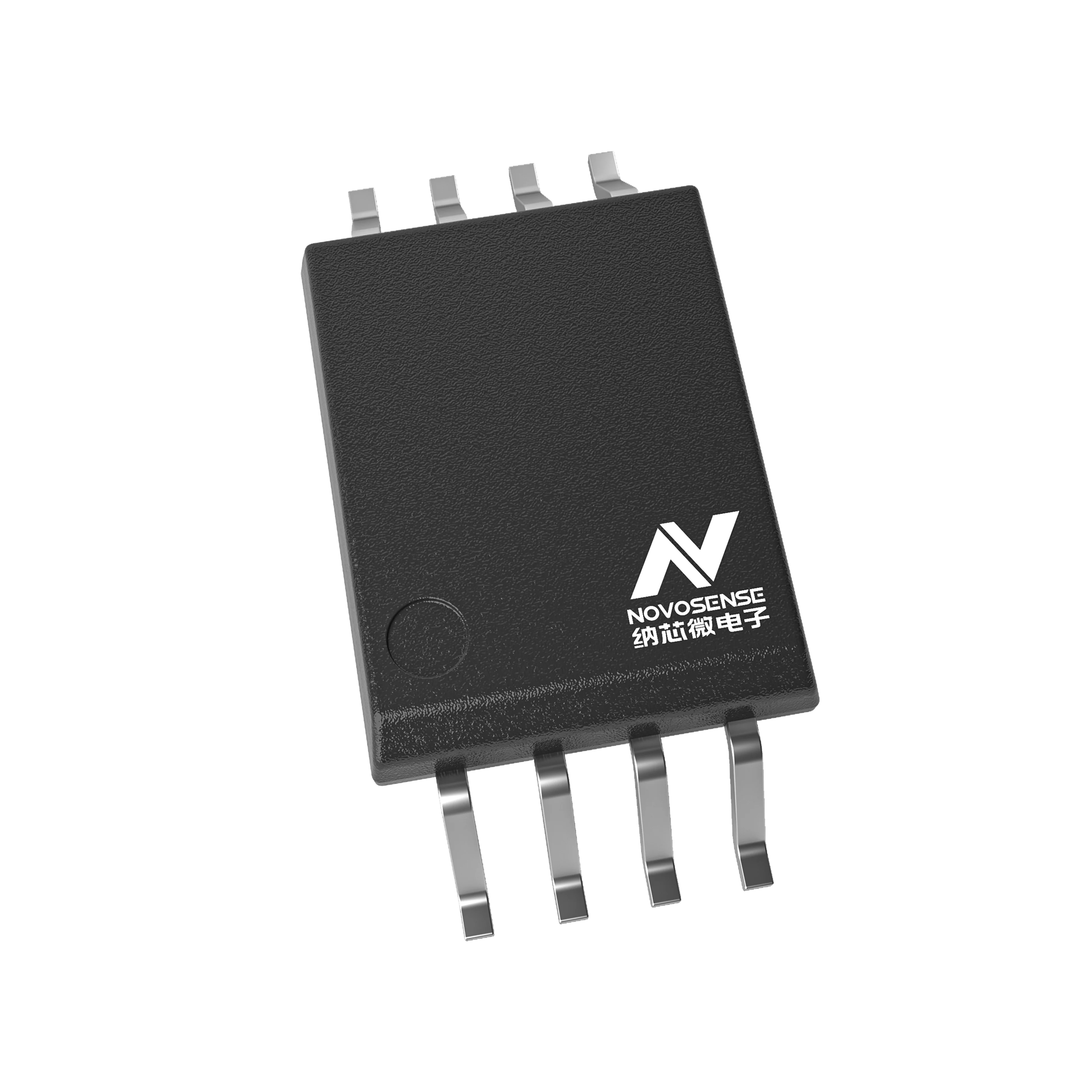

NOVOSENSE NSI1300D25-DSWVR Isolated Amplifier IC

  • Stock: 15

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: NOVOSENSE
  • SKU: 10920 | DAK211

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 159.30 (inc GST)
    Rs.135.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

NOVOSENSE NSI1300D25-DSWVR Isolated Amplifier IC

NSI1300D25-DSWVR is an isolated amplifier IC for shunt current sensing, with a ±250 mV linear input range, 8.2 V/V gain and differential output.

The NOVOSENSE NSI1300D25-DSWVR is a differential-input isolated amplifier IC for measuring small signals across a shunt resistor. It accepts a linear differential input range of ±250 mV and provides a fixed gain of 8.2 V/V. Capacitive isolation separates the input and output sides.
Its differential analog output supports signal processing on the output side, while a fail-safe output responds to input common-mode overvoltage or loss of the Side 1 supply. These design features suit systems that need to measure current while keeping the signal paths isolated.
Use this shunt current sensing amplifier in shunt current monitoring, AC motor controls, uninterruptible power supplies and automotive onboard chargers. The 3.0 V to 5.5 V supply range on each side supports integration with circuits powered at different voltage levels.
DNA stocks NOVOSENSE components for engineers and electronics buyers in India. Explore the NOVOSENSE NSI1300D25-DSWVR and other parts in Instrumentation Amplifiers. Check other Instrumentation Amplifiers that we have in stock
Buying electronics in India? Contact DNA if you cannot find a part. We can help with import support and retail or bulk orders. You can also ask about communication ICs, industrial products and connectors. Contact Us

Features of NOVOSENSE NSI1300D25-DSWVR Isolated Amplifier IC

  • Capacitive isolation separates the input and output sides
  • Differential input and analog output support isolated signal measurement
  • Fixed-gain design simplifies signal conditioning
  • Fail-safe differential output responds to input common-mode overvoltage or loss of Side 1 supply

Specifications of NOVOSENSE NSI1300D25-DSWVR Isolated Amplifier IC

  • Linear differential input range: −250 mV to +250 mV
  • Nominal gain: 8.2 V/V
  • Supply voltage, each side: 3.0 V to 5.5 V
  • Output bandwidth: 250 kHz minimum, 310 kHz typical
  • Common-mode transient immunity: 100 kV/µs minimum, 150 kV/µs typical
  • Operating ambient temperature: −40 °C to +125 °C
  • UL1577 insulation voltage: 5000 Vrms (60-second qualification test)
  • Package: SOP8 (300 mil), 8 pins

Applications of NOVOSENSE NSI1300D25-DSWVR Isolated Amplifier IC

  • Shunt current monitoring
  • AC motor controls
  • Uninterruptible power supplies
  • Automotive onboard chargers

Related Links for NOVOSENSE NSI1300D25-DSWVR Isolated Amplifier IC

Package Includes

  • 1 X NOVOSENSE NSI1300D25-DSWVR Isolated Amplifier IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
