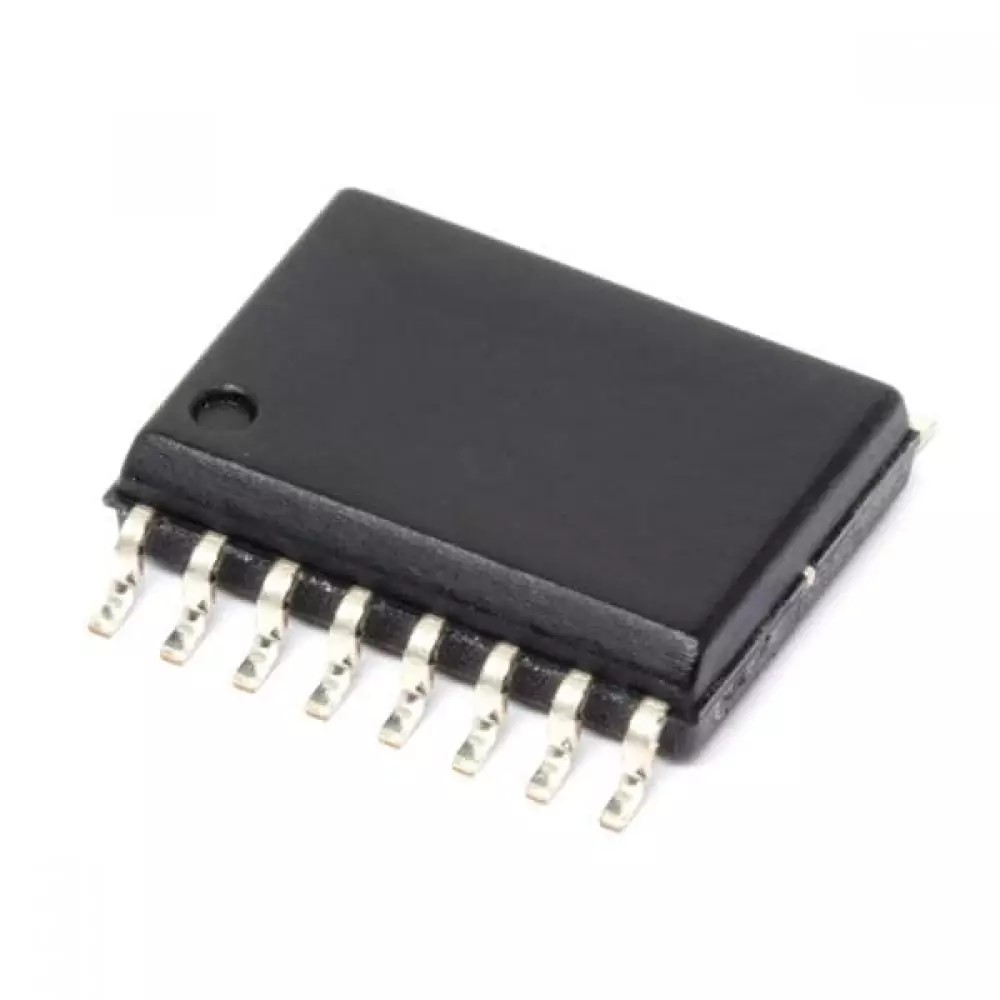

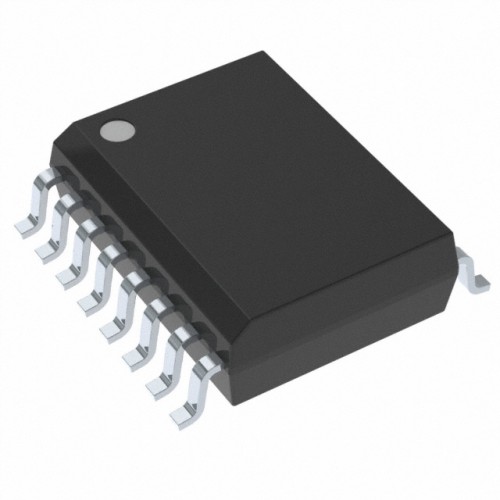

NOVOSENSE NSI83085E-DSWR Isolated Half-Duplex RS-485 Transceiver IC

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: NOVOSENSE
  • SKU: 10915 | DAK207

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 141.60 (inc GST)
    Rs.120.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

NOVOSENSE NSI83085E-DSWR Isolated Half-Duplex RS-485 Transceiver IC

NSI83085E-DSWR isolated half-duplex RS-485 transceiver IC with digital isolation, up to 12 Mbps data rate and 5000 Vrms isolation withstand voltage.

The NOVOSENSE NSI83085E-DSWR is an isolated half-duplex RS-485 transceiver for sending and receiving data across an RS-485 bus. It provides digital isolation between the logic side and bus side, with a maximum data rate of 12 Mbps and a 5000 Vrms isolation withstand voltage.
A fail-safe receiver sets its output high when the receiver inputs are open or shorted. Its low receiver loading allows up to 256 transceivers on one bus. The slew-limited driver can help reduce EMI and signal reflections on transmission lines.
Use this RS-485 transceiver IC in industrial automation, isolated RS-485 links, smart meters and security monitoring. Its separate logic-side and bus-side supplies support designs that need an isolated communication path.
Find NOVOSENSE communication components at DNA for RS-485 and other interface designs. Browse our range of Communication IC's for your next project. Check other Communication IC's that we have in stock
For Indian electronics buyers, DNA can help if you cannot find a part. Ask us about import support, retail orders or bulk supply. You can also enquire about relays, SSR and MOSFET modules, or PCB mount switches. Contact Us

Features of NOVOSENSE NSI83085E-DSWR Isolated Half-Duplex RS-485 Transceiver IC

  • Digital isolation between logic and bus sides
  • Fail-safe receiver sets a logic-high output when inputs are open or shorted
  • Low receiver loading supports multi-device RS-485 bus designs
  • Slew-limited driver helps reduce EMI and signal reflections
  • Bus pins include contact-discharge ESD protection

Specifications of NOVOSENSE NSI83085E-DSWR Isolated Half-Duplex RS-485 Transceiver IC

  • Maximum data rate: 12 Mbps
  • Isolation withstand voltage: 5000 Vrms (UL1577 test, 1 second)
  • Logic-side supply voltage (VDD1): 2.5 V to 5.5 V
  • Bus-side supply voltage (VDD2): 3.0 V to 5.5 V
  • Operating temperature: -40 °C to 105 °C
  • Maximum transceivers per bus: 256 (1/8-unit-load receiver input)
  • Package: 16-pin SOW16 (SOP16, 300 mil)

Applications of NOVOSENSE NSI83085E-DSWR Isolated Half-Duplex RS-485 Transceiver IC

  • Industrial automation systems
  • Isolated RS-485 communication
  • Smart electric meters and water meters
  • Security and protection monitoring

Related Links for NOVOSENSE NSI83085E-DSWR Isolated Half-Duplex RS-485 Transceiver IC

Package Includes

  • 1 X NOVOSENSE NSI83085E-DSWR Isolated Half-Duplex RS-485 Transceiver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
