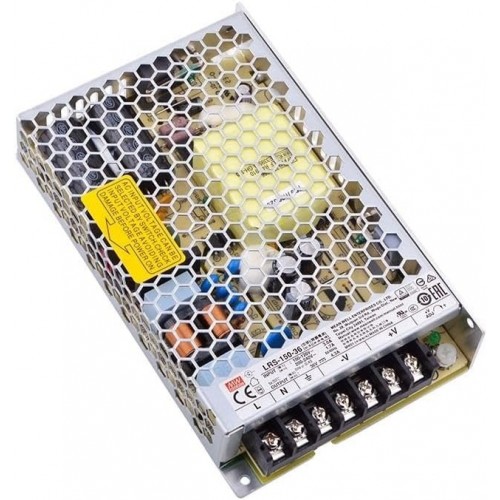

Mean Well LRS-150-36 36 V 154.8 W Enclosed Switching Power Supply

  • Stock: 3

    Availability: InStock priceValidUntil: 2026-12-19

  • Brand: Meanwell
  • SKU: 7564 | DAD711

Availability: InStock priceValidUntil: 2026-12-19

  • Rs. 1,983.29 (inc GST)
    Rs.1,680.75 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mean Well LRS-150-36 36 V 154.8 W Enclosed Switching Power Supply

LRS-150-36 enclosed switching power supply with 36 V DC output, 4.3 A rated current and selectable AC input.

The Mean Well LRS-150-36 is an enclosed switching power supply that converts selectable AC input to a regulated 36 V DC output. It supplies up to 4.3 A for equipment that needs a steady DC source.
Its fanless free-air cooling supports quiet operation without a cooling fan. The enclosed, low-profile case suits installations with limited space. Built-in protection helps guard the supply against short circuits, overload, overvoltage and overtemperature. An LED indicator shows when power is on.
Use this 36 V power supply in industrial automation machinery, control systems and electronic instruments. Its selectable AC input and single DC output make it a practical fit for equipment that needs a regulated supply.
DNA stocks Mean Well power supplies for electronics projects and equipment needs. Browse our Meanwell SMPS range to find a suitable option for your build. Check other Meanwell SMPS that we have in stock
Buying electronic components in India? Contact DNA if you cannot find a part. We can support imports and retail or bulk orders. You can also ask about HMI Display, Transistor, Resistor, Sensor and development boards. Contact Us

Features of Mean Well LRS-150-36 36 V 154.8 W Enclosed Switching Power Supply

  • Selectable AC input supports two input ranges
  • Fanless free-air convection cooling
  • Built-in short-circuit, overload, overvoltage and overtemperature protection
  • LED indicator shows power-on status
  • Enclosed metallic-mesh case with a low-profile design
  • Low no-load power draw limits idle consumption

Specifications of Mean Well LRS-150-36 36 V 154.8 W Enclosed Switching Power Supply

  • DC output voltage: 36 V
  • Rated output current: 4.3 A
  • Rated output power: 154.8 W
  • Input voltage: 85–132 VAC or 170–264 VAC, selected by switch
  • Input frequency: 47–63 Hz
  • Efficiency: 89% typical
  • Operating temperature: −30 to +70 °C, refer to derating curve
  • Dimensions: 159 × 97 × 30 mm (L × W × H)

Applications of Mean Well LRS-150-36 36 V 154.8 W Enclosed Switching Power Supply

  • Industrial automation machinery
  • Industrial control systems
  • Electronic instruments, equipment or apparatus
  • Household appliances

Related Links for Mean Well LRS-150-36 36 V 154.8 W Enclosed Switching Power Supply

Package Includes

  • 1 X Mean Well LRS-150-36 36 V 154.8 W Enclosed Switching Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
