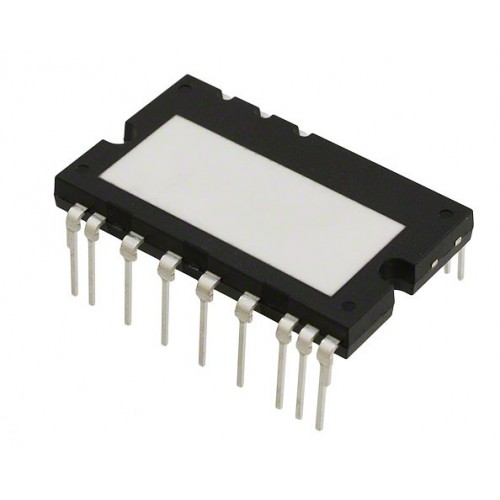

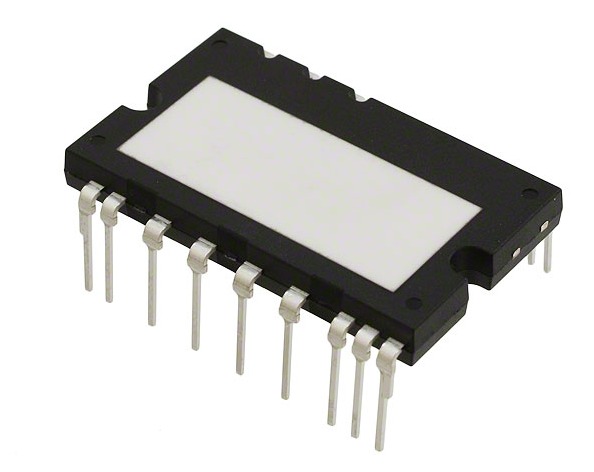

ONSEMI FNC42060F2 Intelligent Power Module (IPM)

ONSEMI FNC42060F2 Intelligent Power Module

ONSEMI FNC42060F2 IPM for driving motors with 250-600V input, 2A output, and compact design.

The ONSEMI FNC42060F2 Intelligent Power Module is engineered for efficient motor control in both industrial and home appliance applications. This module combines a three-phase inverter circuit with integrated gate drivers, ensuring optimal performance. Its low-loss power MOSFETs contribute to effective power conversion while minimizing heat generation, making it a reliable choice for various motor-driven systems.

Designed with a focus on noise immunity, the ONSEMI FNC42060F2 excels in environments with high electromagnetic interference. Its compact design not only conserves PCB space but also enhances thermal management, making it suitable for low to medium power drives and pumps. The pin layout simplifies PCB design, ensuring ease of use for engineers.

With an input voltage range of 250V to 600V and a maximum output current of 2A, the ONSEMI FNC42060F2 Intelligent Power Module supports a wide range of applications. From home appliances to industrial motor control, this module is a robust solution for driving small and medium-sized motors effectively.

Explore the reliable offerings from DNA, your trusted retailer for Motor Driver solutions. The ONSEMI brand stands out in performance and efficiency. Check other Motor Driver that we have in stock.

If you're searching for specific electronic components, DNA can assist you. We can import parts if they're not readily available. Our stock includes Sensors, Microcontrollers, Analog ICs, Hongfa Relays, Super Capacitors, and HMI Displays. Contact Us

Features of ONSEMI FNC42060F2 Intelligent Power Module

• Built-in Bootstrap Diodes
• Low-Loss Power MOSFETs
• Optimized for Noise Immunity
• Compact Design
• Ease of Use

Specification of ONSEMI FNC42060F2 Intelligent Power Module

• Input Voltage Range: 250 V to 600 V
• Output Current (RMS): Up to 2 A
• Power MOSFET Breakdown Voltage: 600 V
• Operating Temperature Range: -40°C to +125°C
• Package Type: DIP-26

Applications of ONSEMI FNC42060F2 Intelligent Power Module

• Home Appliances
• Industrial Motor Control
• Pumps and Compressors
• Low to Medium Power Drives

Package Includes

• 1 X ONSEMI FNC42060F2 Intelligent Power Module
