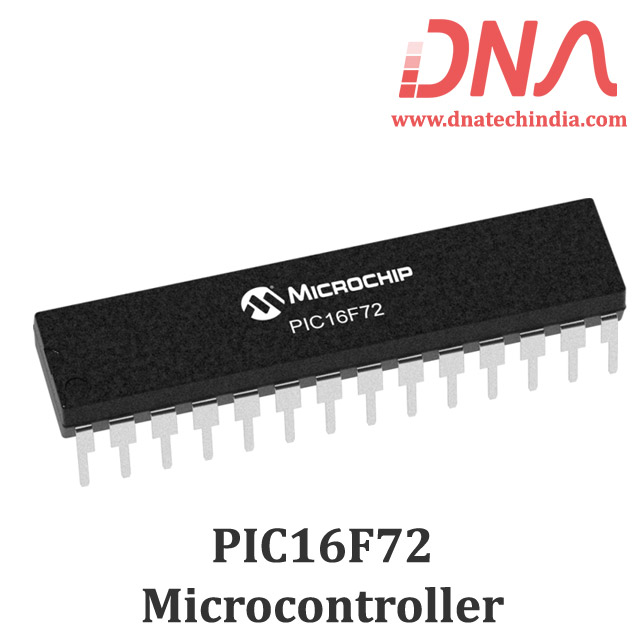

PIC16f72 Microcontroller

PIC16f72 is a low cost 28  pin microcontroller from Microcohip with Analog to Digital converter

Microchip's PIC16f72 microcontroller is a powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F72 microcontroller features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, capture/compare/PWM function and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus.

All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Features of PIC16f72 Microcontroller

• Max ADC Resolution (bits): 8

• Number of ADCs: 1

• Program Memory Size (KB): 3.5

• Capture/Compare/PWM (CCP): 1

• CPU Speed (MIPS/DMIPS): 5

• DigitalTimerQty_16bit: 1

• Max 8 Bit Digital Timers: 2

• Program Memory Type: Flash

• mtrlcntrlinputcapture: 1

• ADC Channels: 5

• Low Power: No

• Operating Voltage: 2 - 5.5

• Pin Count: 28

• SSP: 1

• Temp Range (°C): -40 - 125

Related Details

• PIC16f72 Microcontroller Datasheet

Package Includes

1 x PIC16F72 Microcontroller
