Product Images are shown for illustrative purposes only and may differ from actual product.

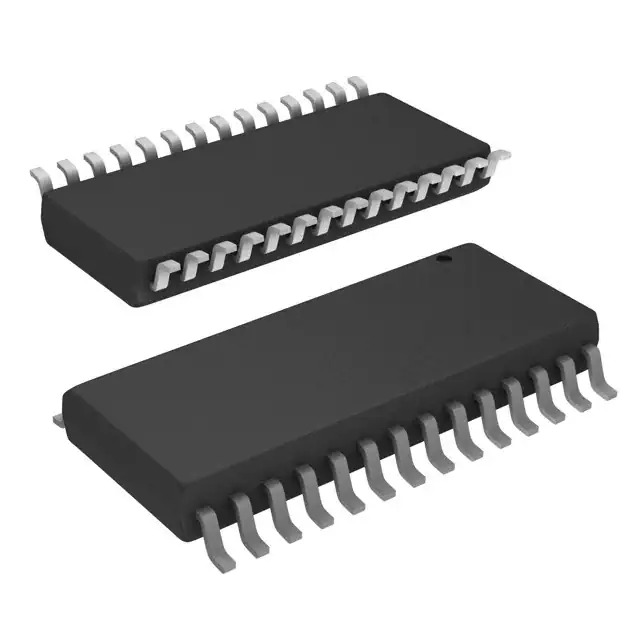

PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC


Write a review | 1 reviews

  • Stock: 4

    Availability: InStock priceValidUntil: 2026-02-22

  • SKU: 3616 | DAD932

Availability: InStock priceValidUntil: 2026-02-22

  • Rs. 472.00 (inc GST)
    Rs.400.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC

PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC

This is a 28 pin high performance 10- bit PIC series Micro-controller from Microchip.

DNA solutions, Nashik has various types of IC'S. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC

  • Up to 10 MIPS performance
  • 8 x 8 Single Cycle Hardware Multiply
  • Wide operating Voltage range; 2.0V to 5.5V
  • C compiler optimized RISC architecture
  • Run, Idle and Sleep modes
  • Idle mode currents down to 5.8uA typical
  • Fail-Safe Clock Monitor – allows safe shutdown if clock fails
  • Watchdog Timer with separate RC oscillator
  • Programmable Low Voltage Detection Module
  • Programmable Brown-out Reset module
  • Two Analog comparators with input multiplexing
  • Master Synchronous Serial Port supports SPI ™ and I2C™ Master and Slave Mode
  • EUSART module including LIN bus support
  • Four Timer Modules
  • Up to 2 PWM outputs
  • Up to 2 Capture / Compare
  • Sleep mode currents down to 0.1uA typical
  • Internal oscillator support 31 kHz to 8 MHz
  • 10-bit ADC, 10 channels, 100K samples per second

Specification of PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC

  • Manufacturer-MICROCHIP TECHNOLOGY
  • Type of integrated circuit-PIC microcontroller
  • Program memory-32kB
  • Clock frequency-40MHz
  • Mounting-SMD
  • Case-SO28SRAM memory capacity-1.5kB
  • EEPROM memory capacity-256B
  • Kind of architecture-Harvard 8bit
  • Family-PIC18
  • Number of capacitive channels-10
  • Number of output compare channels 2
  • Number of input capture channels 2
  • Kind of package tube
  • Operating temperature-40...85°C
  • Number of comparators 2
  • Flash memory capacity 31.25kB
  • Terminal pitch 1.27mm
  • Operating frequency 0...40MHz
  • Built-in generator 32kHz, 8MHz
  • Number of inputs/outputs-25
  • Number of 8bit timers-1
  • Number of 16bit timers-3

    Package Includes

    1 x PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
