• PMBT3906 PNP Switching Transistor

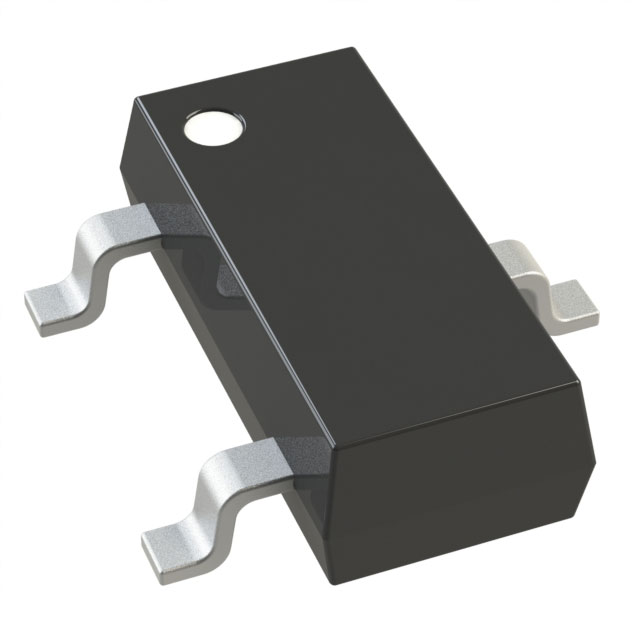

Product Images are shown for illustrative purposes only and may differ from actual product.

PMBT3906 PNP Switching Transistor

  • Stock: Out Of Stock
  • SKU: 9368 | DAE332
  • Rs. 11.19 (inc GST)
    Rs.9.48 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PMBT3906 PNP Switching Transistor

PMBT3906 PNP Switching Transistor

The PMBT3906 is a general-purpose PNP bipolar junction transistor designed for low-power switching and amplification tasks. It supports a collector current up to −200 mA and a collector-emitter voltage of −40 V. Housed in a compact SOT23 surface-mount package, it offers fast switching speed and low saturation voltage. With a DC gain of 100–300 and transition frequency of 250 MHz, it's ideal for high-speed signal applications. The device is also AEC-Q101 qualified, making it suitable for automotive and industrial electronics.

DNA solutions, Nashik has various types of Transistor's. Check out our complete collection of Transistor's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PMBT3906 PNP Switching Transistor

  • Collector-emitter voltage VCEO = −40 V
  • Collector current capability IC = −200 mA
  • Fast switching speed
  • Low saturation voltage
  • Complementary to PMBT3904
  • AEC-Q101 qualified for automotive applications
  • Suitable for both digital and analog applications

Specifications of PMBT3906 PNP Switching Transistor

  • Product Category: Bipolar Transistors-BJT
  • Technology: Si
  • Mounting Style: SMD/SMT
  • Package/Case: SOT-23-3
  • Transistor Polarity: PNP
  • Configuration: Single
  • Maximum DC Collector Current: 200 mA
  • Packaging: Reel

Applications of PMBT3906 PNP Switching Transistor

  • General amplification and switching
  • Complementary Push-Pull Circuits
  • Sensor and Interface Circuits
  • Battery-Powered Devices
  • Digital Logic Circuits

    Package Includes

          1 x PMBT3906 PNP Switching Transistor

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
