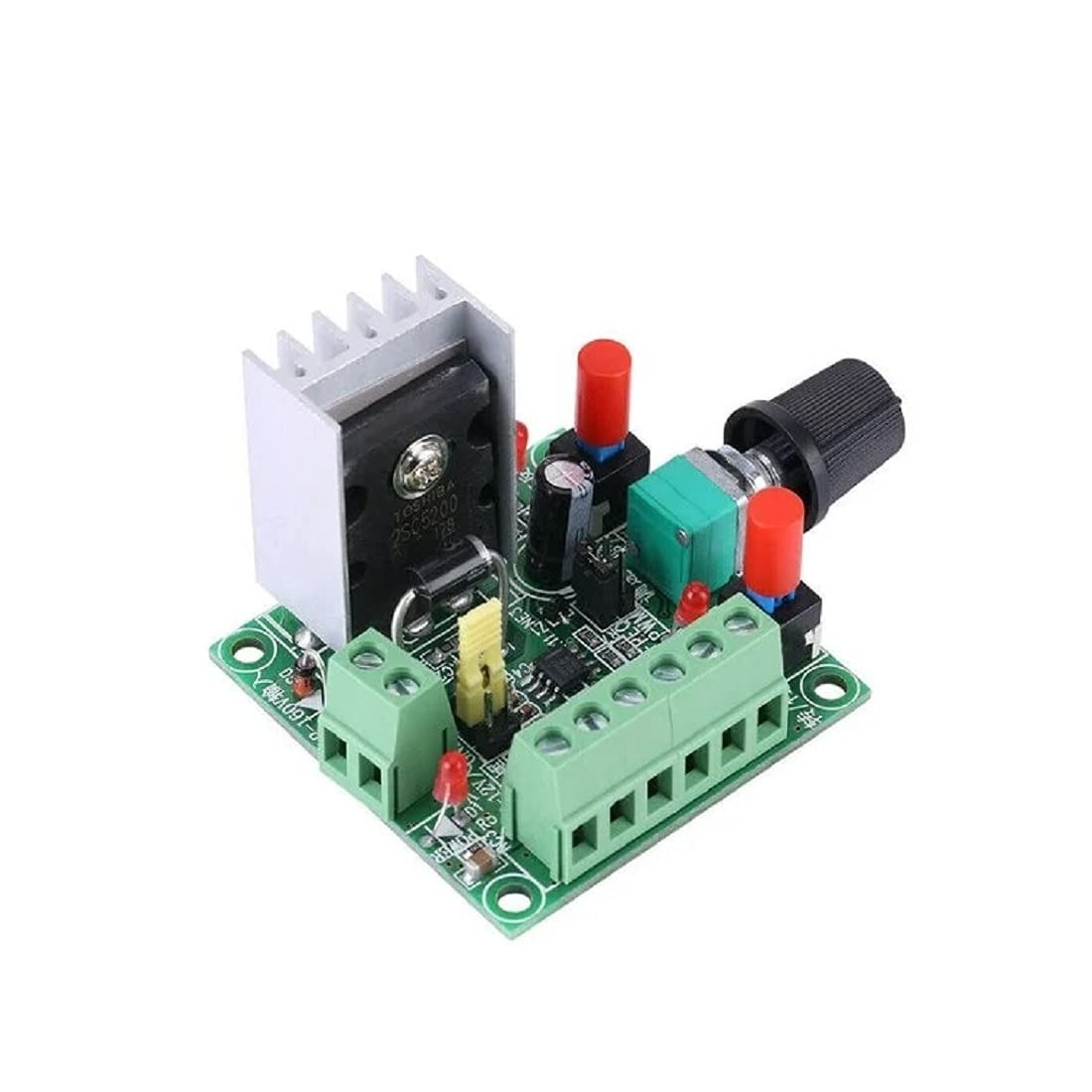

PWM Generator Module for Stepper Motor Driver

PWM Generator Module for Stepper Motor Driver

PWM Generator for Stepper Motors; Adjustable frequency, duty cycle; Operates from 5V to 30V.

The PWM Generator Module for Stepper Motor Driver is essential for precise motor control. It generates square pulses with adjustable frequency and duty cycle across two channels, making it ideal for various electronics projects. This module operates in a voltage range of 5V to 30V and supports frequencies from 1Hz to 150KHz with a precision of 2%. Its independent outputs allow for customized pulse generation, enhancing flexibility in setup.

Engineered for reliability, the PWM Generator Module for Stepper Motor Driver simplifies controlling stepper motors, making it suitable for robotics and signal generation applications. The module features three microswitches for easy pulse adjustment and a micro USB input for convenient powering. With additional pins for external power supply, it caters to diverse project requirements.

Explore the versatility of the PWM Generator Module for Stepper Motor Driver as a dependable choice for electronic enthusiasts in India. Its performance and adaptability make it a valuable addition to your electronic components collection.

At DNA, we offer quality products like the PWM Generator Module for Stepper Motor Driver. Explore our range of Motor Driver Modules for precise control solutions. Check other Motor Driver Modules that we have in stock.

If you need specific components, DNA can assist. We support retail and bulk orders, and can import items not available. Explore our range including Programmer, Analog IC, Power Supply, Super Capacitor, SMPS, and Development boards. Contact Us.

Features of PWM Generator Module for Stepper Motor Driver

• Adjustable frequency
• Adjustable duty cycle
• Independent PWM outputs

Specification of PWM Generator Module for Stepper Motor Driver

• Operating voltage: 5 – 30V
• Frequency range: 1Hz – 150KHz
• Frequency Precision: 2%

Applications of PWM Generator Module for Stepper Motor Driver

• Stepper motor control
• Robotics applications
• Signal generation

Related Links for PWM Generator Module for Stepper Motor Driver

• Other Products from Motor Driver Modules Category

Package Includes

• 1 X PWM Generator Module for Stepper Motor Driver
