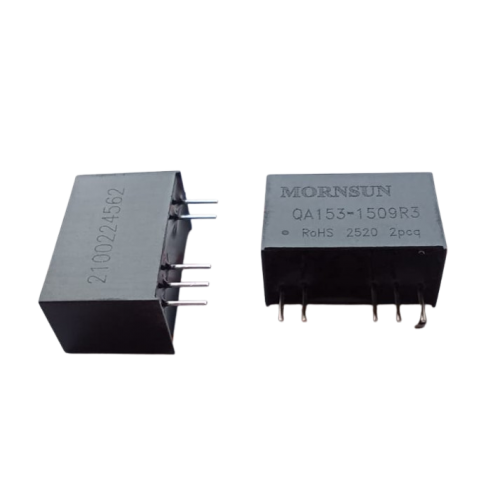

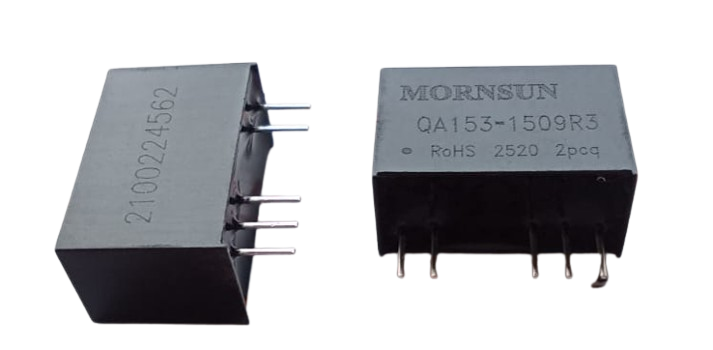

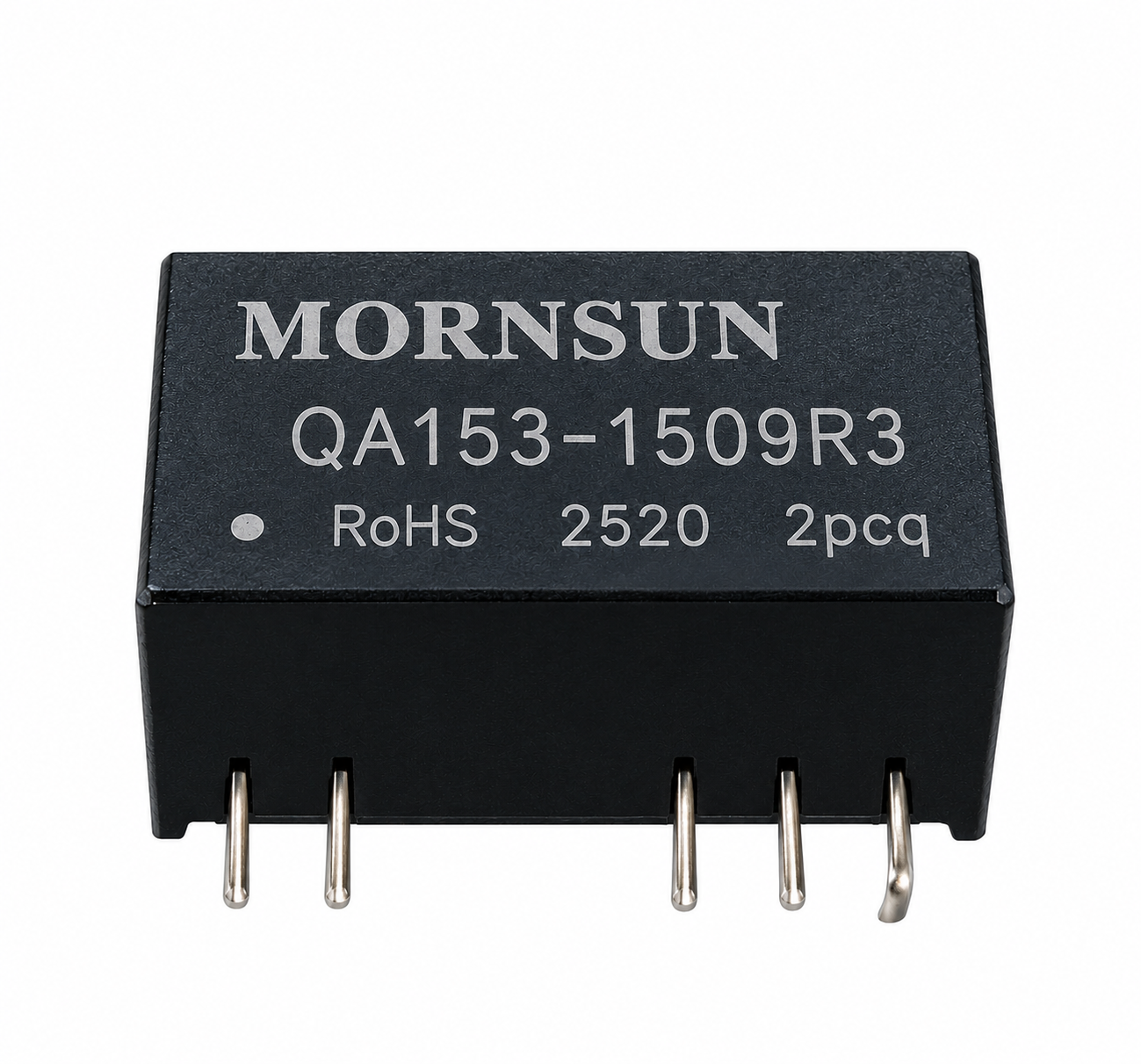

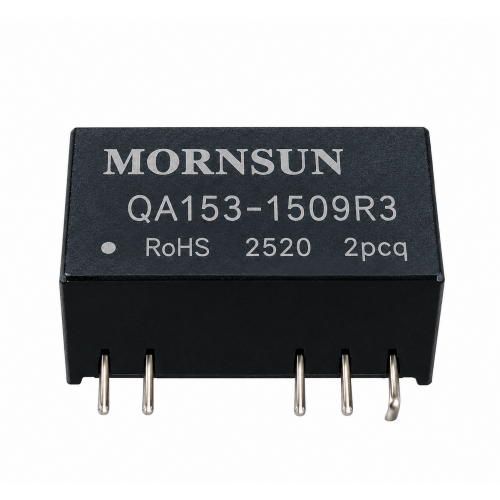

Mornsun QA153-1509R3 Isolated DC/DC Converter for IGBT/MOSFET Drivers

  • Stock: 11

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 9490 | DAI442

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 439.67 (inc GST)
    Rs.372.60 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun QA153-1509R3 Isolated DC/DC Converter for IGBT/MOSFET Drivers

QA153-1509R3 isolated DC/DC converter for IGBT/MOSFET drivers, with 13.5–16.5 VDC input, nominal +15 V/-9 V outputs and a SIP package.

The Mornsun QA153-1509R3 is an isolated DC/DC converter module for IGBT and MOSFET gate-driver power supplies. It takes a nominal 15 VDC input and provides positive and negative output rails with nominal +15 V and -9 V outputs. This arrangement supports gate-drive circuits that need both supply polarities.
Its reinforced input-to-output insulation helps separate the driver supply from the input side. The module also has continuous short-circuit protection with self-recovery and a compact SIP package for board integration.
Use this converter in IGBT or MOSFET driver supplies, AC servo drive systems, electric welding machines or UPS equipment. Its isolated dual-output design suits systems that need separate gate-drive power rails.
DNA stocks Mornsun power modules for isolated gate-drive designs. Explore DC to DC Converter Modules for projects that need positive and negative supply rails in a compact form. Check other DC to DC Converter Modules that we have in stock
For Indian electronics buyers, DNA can help source parts that are not listed. Ask about import support and retail or bulk orders for items such as power supplies, diodes and development modules. Contact Us

Features of Mornsun QA153-1509R3 Isolated DC/DC Converter for IGBT/MOSFET Drivers

  • Provides isolated positive and negative output rails with a common ground
  • Reinforced insulation between input and output
  • Continuous short-circuit protection with self-recovery
  • High common-mode transient immunity for switching circuits
  • Compact SIP package

Specifications of Mornsun QA153-1509R3 Isolated DC/DC Converter for IGBT/MOSFET Drivers

  • Input voltage: 13.5–16.5 VDC operating range
  • Positive output voltage: 14.25–15.75 V at 15 VDC input and 100 mA positive output current
  • Negative output voltage: -8.82 to -7.92 V at 15 VDC input and -100 mA output current
  • Rated output current: +100 mA / -100 mA
  • Input-to-output isolation test voltage: 5000 VAC for 1 minute
  • Continuous input-to-output barrier withstand voltage: 1700 V
  • Operating temperature: -40°C to +105°C, with derating from 85°C
  • Dimensions: 19.50 × 9.80 × 12.50 mm

Applications of Mornsun QA153-1509R3 Isolated DC/DC Converter for IGBT/MOSFET Drivers

  • IGBT/MOSFET driver power supplies
  • AC servo drive systems
  • Electric welding machines
  • Uninterruptible power supplies (UPS)

Related Links for Mornsun QA153-1509R3 Isolated DC/DC Converter for IGBT/MOSFET Drivers

Package Includes

  • 1 X Mornsun QA153-1509R3 Isolated DC/DC Converter for IGBT/MOSFET Drivers
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
